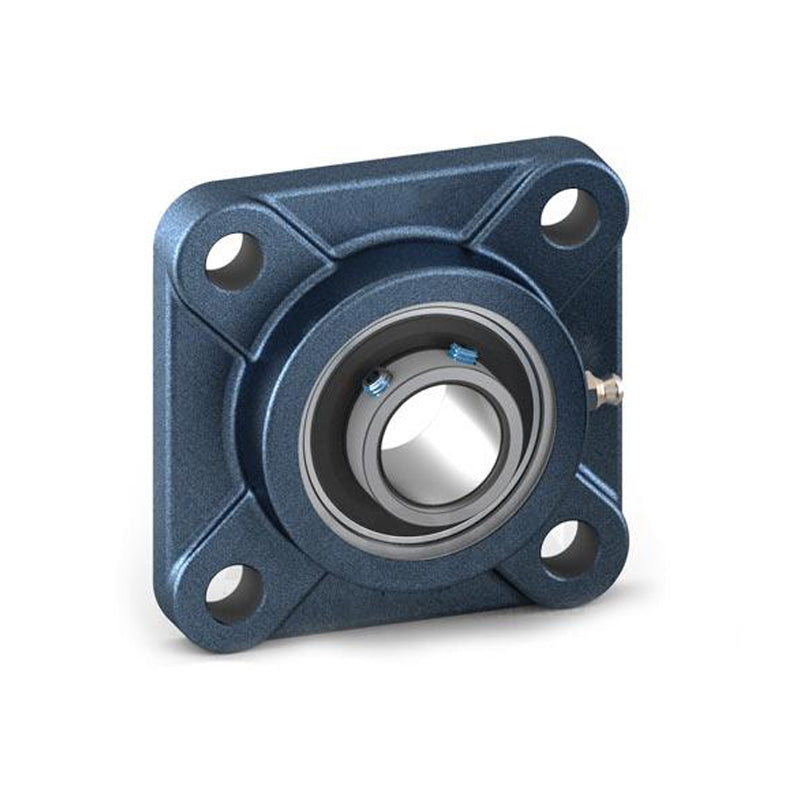

UCFX18-56 Imperial Four Bolt Cast Iron Square Housing with 3-1/2 inch Bore Insert
UCFX18-56 Imperial Four Bolt Cast Iron Square Housing with 3-1/2 inch Bore Insert
Regular price
Rs. 44,926.32
ex VAT
Regular price
Sale price
Rs. 44,926.32
ex VAT
In stock
Price Break
10+
Rs. 39,984.42
19+
Rs. 37,738.11
29+
Rs. 37,288.85
39+
Rs. 36,839.58
49+
Rs. 36,390.32
74+
Rs. 35,941.06
99+
Rs. 33,694.74
199+
Rs. 33,245.48
249+
Rs. 32,796.21
499+
Rs. 32,346.95
999+
Rs. 31,448.42
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| a | 214mm |
| e | 171mm |
| i | 45mm |
| g | 24mm |
| L | 76mm |
| s | 23mm |
| Z | 106.1mm |
| Bi | 104mm |
| n | 42.9mm |
| Bolt Size | M20 |
| Weight | 11.2 kg |
| Dynamic load | 10900 kgf |
| Static load | 8170 kgf |
