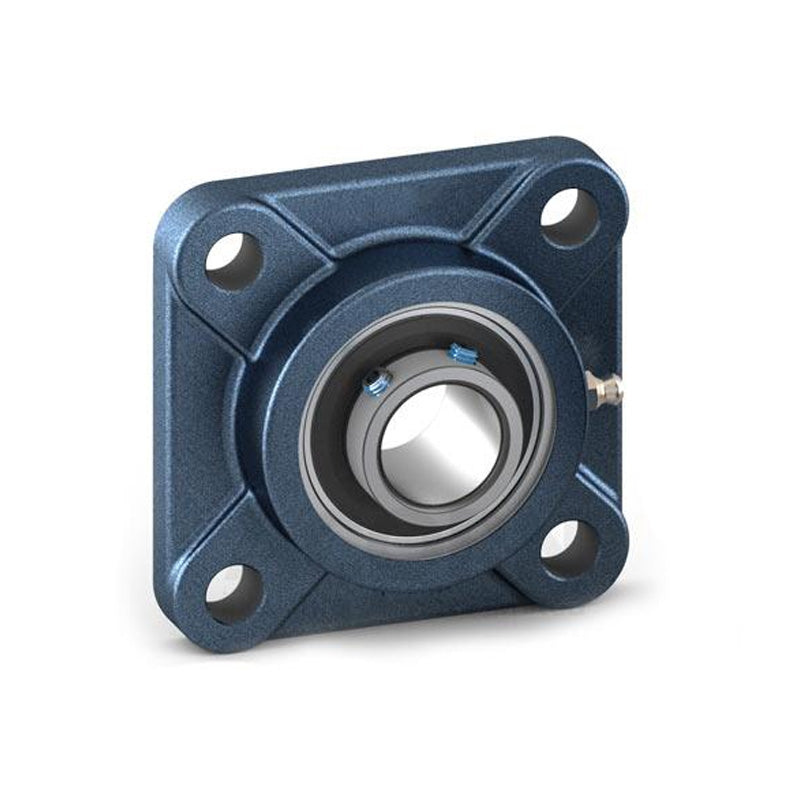

UCFX17-52 Imperial Four Bolt Cast Iron Square Housing with 3-1/4 inch Bore Insert
UCFX17-52 Imperial Four Bolt Cast Iron Square Housing with 3-1/4 inch Bore Insert
Regular price
Rs. 40,836.71
Regular price
Sale price
Rs. 40,836.71
Taxes included.
In stock
Price Break
10+
Rs. 36,344.67
19+
Rs. 34,302.84
29+
Rs. 33,894.47
39+
Rs. 33,486.10
49+
Rs. 33,077.74
74+
Rs. 32,669.37
99+
Rs. 30,627.53
199+
Rs. 30,219.17
249+
Rs. 29,810.80
499+
Rs. 29,402.43
999+
Rs. 28,585.70
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 214mm |
| e | 171mm |
| i | 40mm |
| g | 24mm |
| L | 70mm |
| s | 23mm |
| Z | 96.3mm |
| Bi | 96mm |
| n | 39.7mm |
| Bolt Size | M20 |
| Weight | 10.5 kg |
| Dynamic load | 7550 kgf |
| Static load | 6170 kgf |
