SKU: UCFX.15-48

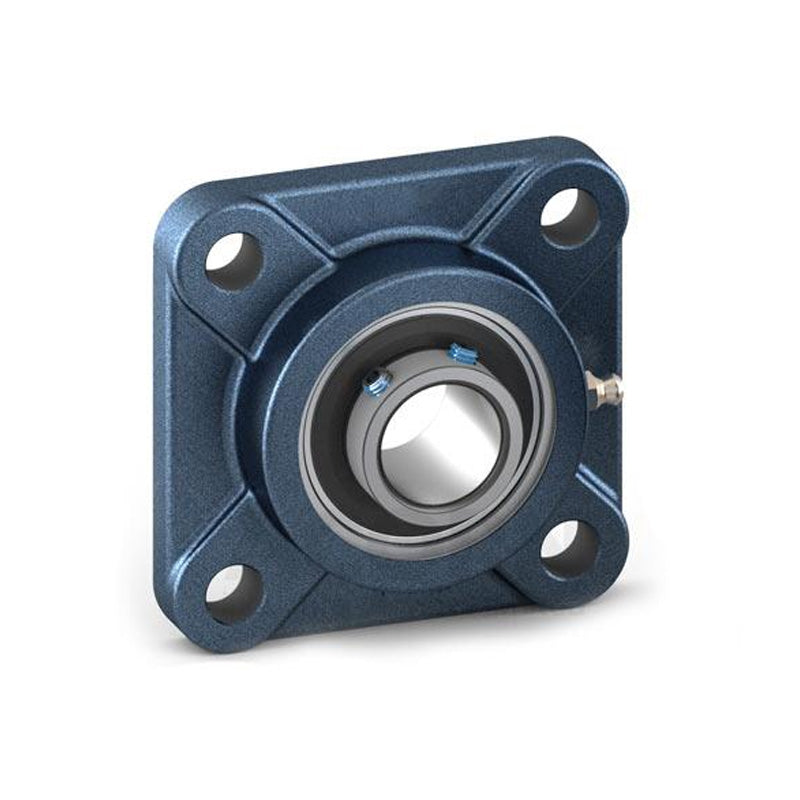

UCFX15-48 Imperial Four Bolt Cast Iron Square Housing with 3 inch Bore Insert
UCFX15-48 Imperial Four Bolt Cast Iron Square Housing with 3 inch Bore Insert
Regular price
Rs. 12,831.03
ex VAT
Regular price
Sale price
Rs. 12,831.03
ex VAT
In stock
Price Break
10+
Rs. 11,419.62
19+
Rs. 10,778.07
29+
Rs. 10,649.75
39+
Rs. 10,521.44
49+
Rs. 10,393.13
74+
Rs. 10,264.82
99+
Rs. 9,623.27
199+
Rs. 9,494.96
249+
Rs. 9,366.65
499+
Rs. 9,238.34
999+
Rs. 8,981.72
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| d | 3 inch |
|---|---|
| a | 197mm |
| e | 152mm |
| i | 40mm |
| g | 24mm |
| L | 68mm |
| s | 23mm |
| Z | 89.3mm |
| Bi | 82.6mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 8 kg |
| Dynamic load | 5700 kgf |
| Static load | 4550 kgf |
