SKU: UCFX.14

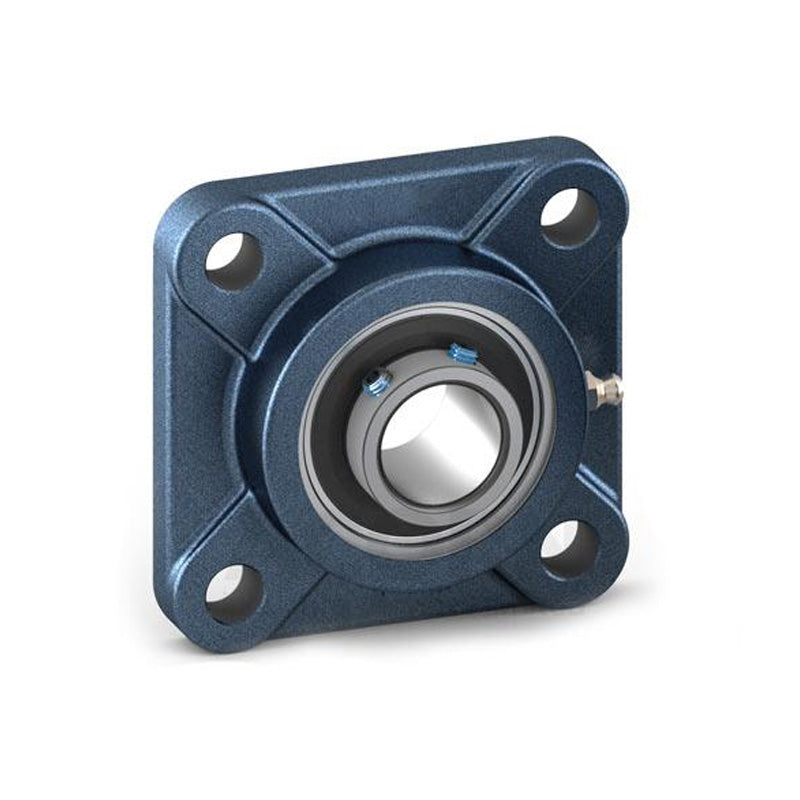

UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
Regular price
Rs. 10,503.94
Regular price
Sale price
Rs. 10,503.94
Taxes included.
Equivalent to: MSF70
In stock
Price Break
10+
Rs. 9,348.51
19+
Rs. 8,823.31
29+
Rs. 8,718.27
39+
Rs. 8,613.23
49+
Rs. 8,508.19
74+
Rs. 8,403.15
99+
Rs. 7,877.96
199+
Rs. 7,772.92
249+
Rs. 7,667.88
499+
Rs. 7,562.84
999+
Rs. 7,352.76
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF70
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| d | 70mm |
|---|---|
| a | 197mm |
| e | 152mm |
| i | 37mm |
| g | 24mm |
| L | 60mm |
| s | 23mm |
| Z | 81.5mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 7.3 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
