SKU: UCFX.13-40

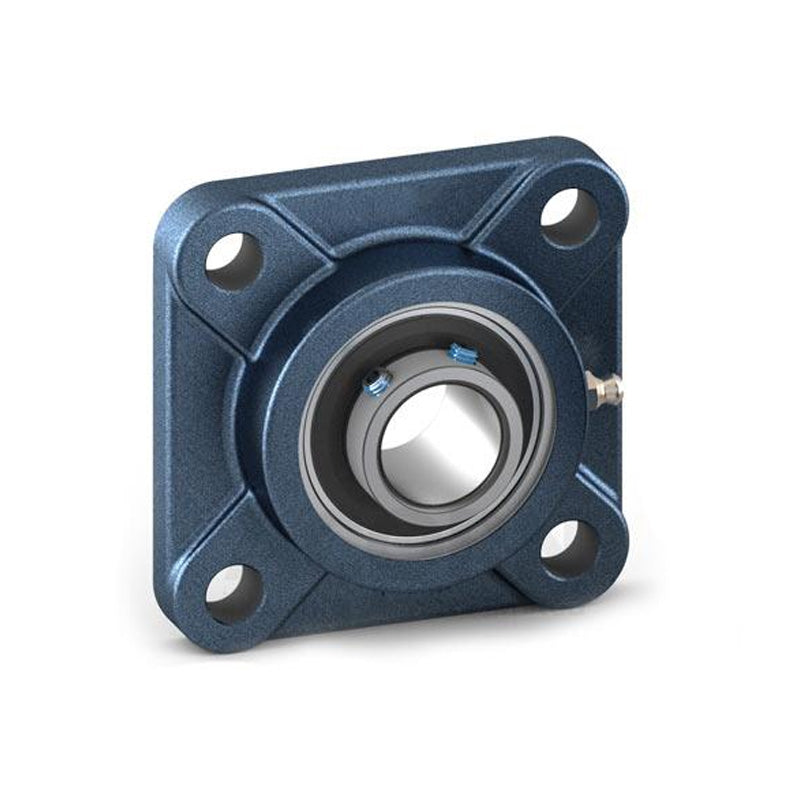

UCFX13-40 Imperial Four Bolt Cast Iron Square Housing with 2-1/2 inch Bore Insert
UCFX13-40 Imperial Four Bolt Cast Iron Square Housing with 2-1/2 inch Bore Insert
Regular price
Rs. 10,893.45
ex VAT
Regular price
Sale price
Rs. 10,893.45
ex VAT
Equivalent to: MSF2-1/2
In stock
Price Break
10+
Rs. 9,695.17
19+
Rs. 9,150.50
29+
Rs. 9,041.56
39+
Rs. 8,932.63
49+
Rs. 8,823.69
74+
Rs. 8,714.76
99+
Rs. 8,170.09
199+
Rs. 8,061.15
249+
Rs. 7,952.22
499+
Rs. 7,843.28
999+
Rs. 7,625.42
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF2-1/2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 34mm |
| g | 21mm |
| L | 59mm |
| s | 19mm |
| Z | 73.7mm |
| Bi | 70.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 5.9 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
| Rec max speed | 2450 rpm |
