SKU: UCFX.13

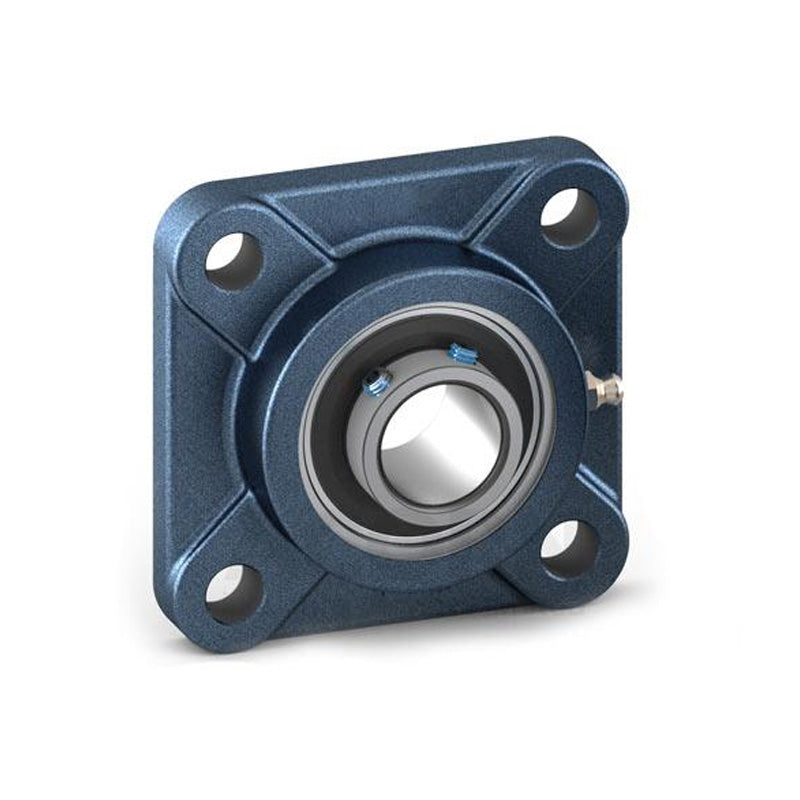

UCFX13 Metric Four Bolt Cast Iron Square Housing with 65mm Bore Insert
UCFX13 Metric Four Bolt Cast Iron Square Housing with 65mm Bore Insert
Regular price
Rs. 11,012.17
Regular price
Sale price
Rs. 11,012.17
Taxes included.
Equivalent to: MSF65
In stock
Price Break
10+
Rs. 9,800.83
19+
Rs. 9,250.22
29+
Rs. 9,140.10
39+
Rs. 9,029.98
49+
Rs. 8,919.86
74+
Rs. 8,809.74
99+
Rs. 8,259.13
199+
Rs. 8,149.01
249+
Rs. 8,038.88
499+
Rs. 7,928.76
999+
Rs. 7,708.52
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF65
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 34mm |
| g | 21mm |
| L | 59mm |
| s | 19mm |
| Z | 73.7mm |
| Bi | 70.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 5.9 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
| Rec max speed | 2300 rpm |
