SKU: UCFX.10-30

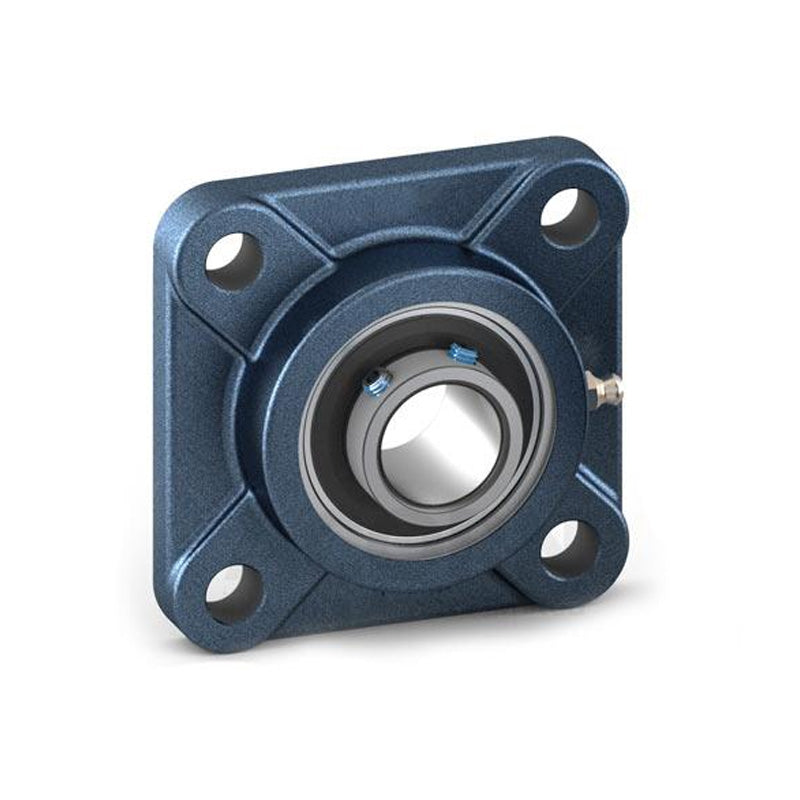

UCFX10-30 Imperial Four Bolt Cast Iron Square Housing with 1-7/8 inch Bore Insert
UCFX10-30 Imperial Four Bolt Cast Iron Square Housing with 1-7/8 inch Bore Insert
Regular price
Rs. 1,552.59
ex VAT
Regular price
Sale price
Rs. 1,552.59
ex VAT
In stock
Price Break
10+
Rs. 1,381.81
19+
Rs. 1,304.18
29+
Rs. 1,288.65
39+
Rs. 1,273.12
49+
Rs. 1,257.60
74+
Rs. 1,242.07
99+
Rs. 1,164.44
199+
Rs. 1,148.92
249+
Rs. 1,133.39
499+
Rs. 1,117.86
999+
Rs. 1,086.81
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| a | 162mm |
| e | 130mm |
| i | 26mm |
| g | 20mm |
| L | 44mm |
| s | 19mm |
| Z | 59.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.6 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
