SKU: UCFX.09-27

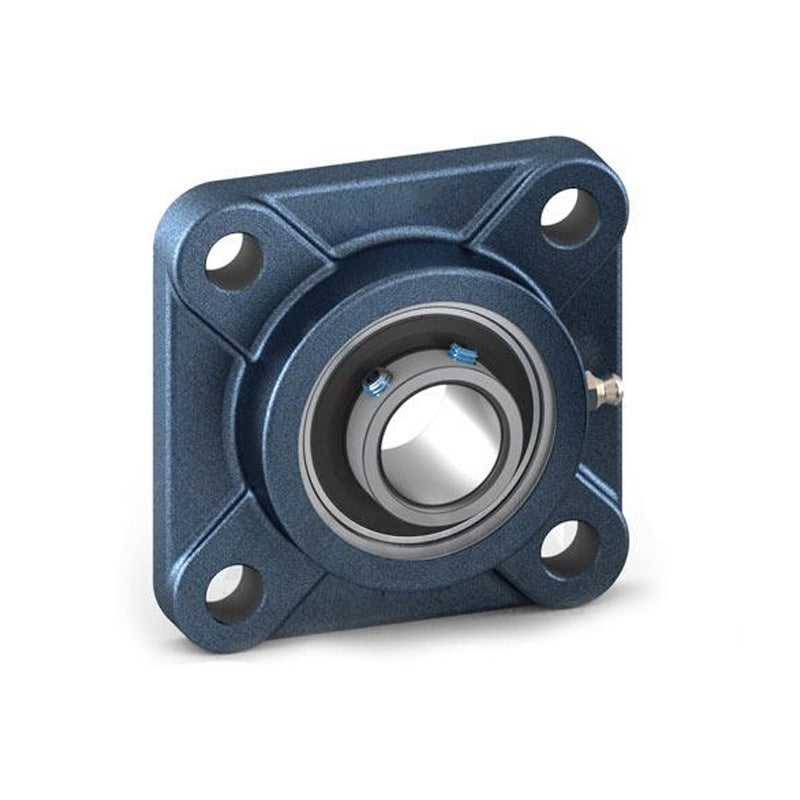

UCFX09-27 Imperial Four Bolt Cast Iron Square Housing with 1-11/16 inch Bore Insert
UCFX09-27 Imperial Four Bolt Cast Iron Square Housing with 1-11/16 inch Bore Insert
Regular price
Rs. 4,951.57
ex VAT
Regular price
Sale price
Rs. 4,951.57
ex VAT
In stock
Price Break
10+
Rs. 4,406.90
19+
Rs. 4,159.32
29+
Rs. 4,109.80
39+
Rs. 4,060.29
49+
Rs. 4,010.77
74+
Rs. 3,961.26
99+
Rs. 3,713.68
199+
Rs. 3,664.16
249+
Rs. 3,614.65
499+
Rs. 3,565.13
999+
Rs. 3,466.10
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| a | 143mm |
| e | 111mm |
| i | 23mm |
| g | 14mm |
| L | 40mm |
| s | 19mm |
| Z | 55.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
