SKU: UCFX.09

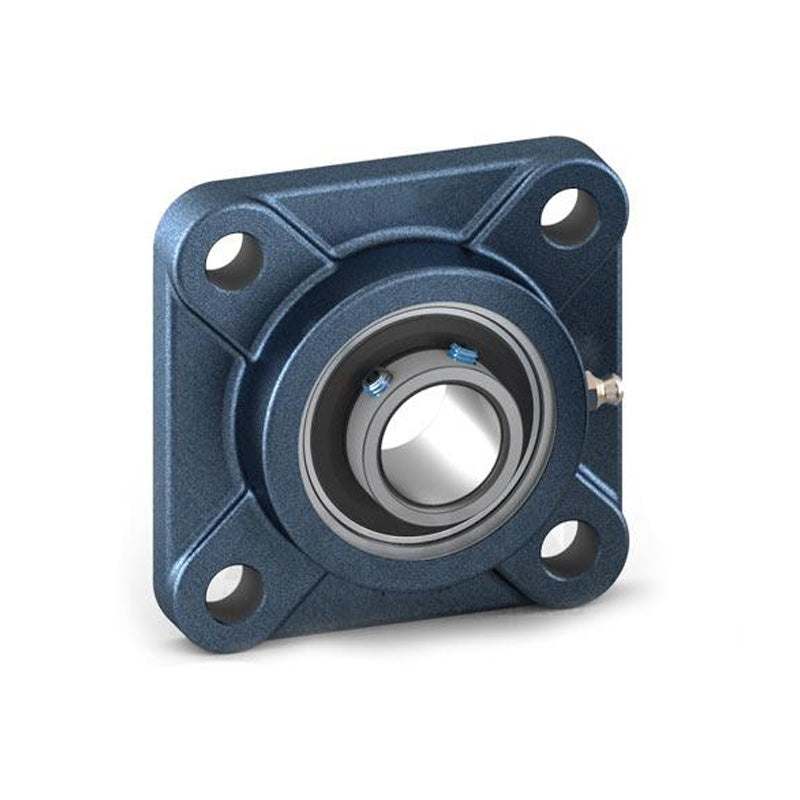

UCFX09 Metric Four Bolt Cast Iron Square Housing with 45mm Bore Insert
UCFX09 Metric Four Bolt Cast Iron Square Housing with 45mm Bore Insert
Regular price
Rs. 4,457.61
Regular price
Sale price
Rs. 4,457.61
Taxes included.
Equivalent to: MSF45
In stock
Price Break
10+
Rs. 3,967.27
19+
Rs. 3,744.39
29+
Rs. 3,699.82
39+
Rs. 3,655.24
49+
Rs. 3,610.66
74+
Rs. 3,566.09
99+
Rs. 3,343.21
199+
Rs. 3,298.63
249+
Rs. 3,254.06
499+
Rs. 3,209.48
999+
Rs. 3,120.33
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF45
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFX
- Bolt Hole Centres:
- 111mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 143mm |
| e | 111mm |
| i | 23mm |
| g | 14mm |
| L | 40mm |
| s | 19mm |
| Z | 55.6mm |
| Bi | 51.6mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.5 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
