SKU: UCFX.08-24

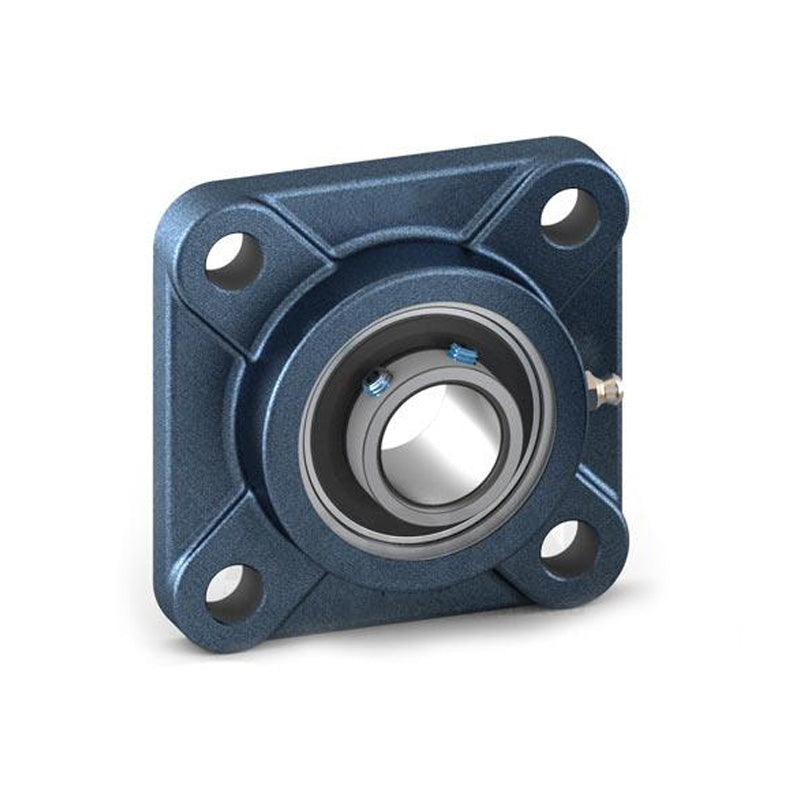

UCFX08-24 Imperial Four Bolt Cast Iron Square Housing with 1-1/2 inch Bore Insert
UCFX08-24 Imperial Four Bolt Cast Iron Square Housing with 1-1/2 inch Bore Insert
Regular price
Rs. 3,533.22
ex VAT
Regular price
Sale price
Rs. 3,533.22
ex VAT
Equivalent to: MSF1-1/2
In stock
Price Break
10+
Rs. 3,144.57
19+
Rs. 2,967.90
29+
Rs. 2,932.57
39+
Rs. 2,897.24
49+
Rs. 2,861.91
74+
Rs. 2,826.58
99+
Rs. 2,649.92
199+
Rs. 2,614.58
249+
Rs. 2,579.25
499+
Rs. 2,543.92
999+
Rs. 2,473.25
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1-1/2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 137mm |
| e | 105mm |
| i | 22mm |
| g | 14mm |
| L | 40mm |
| s | 19mm |
| Z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M16 |
| Weight | 2.1 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
| Rec max speed | 3700 rpm |
