SKU: UCFX.07-23

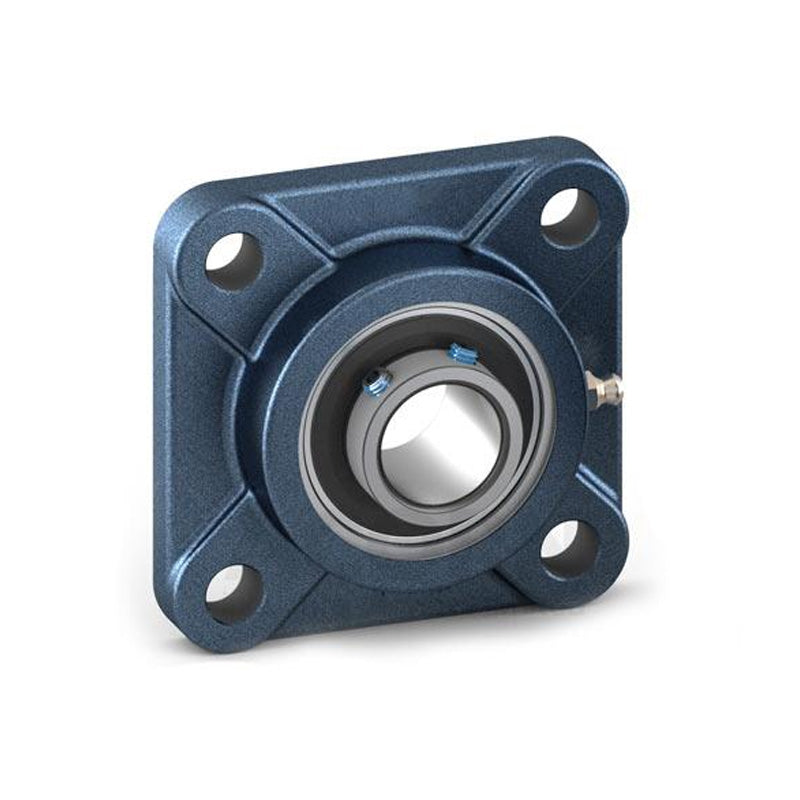

UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
Regular price
Rs. 1,595.11
Regular price
Sale price
Rs. 1,595.11
Taxes included.
Equivalent to: MSF1-716
In stock
Price Break
10+
Rs. 1,419.65
19+
Rs. 1,339.89
29+
Rs. 1,323.94
39+
Rs. 1,307.99
49+
Rs. 1,292.04
74+
Rs. 1,276.09
99+
Rs. 1,196.33
199+
Rs. 1,180.38
249+
Rs. 1,164.43
499+
Rs. 1,148.48
999+
Rs. 1,116.58
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1-716
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| a | 130mm |
| e | 102mm |
| i | 21mm |
| g | 14mm |
| L | 38mm |
| s | 16mm |
| Z | 51.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
