SKU: UCFX.06-20

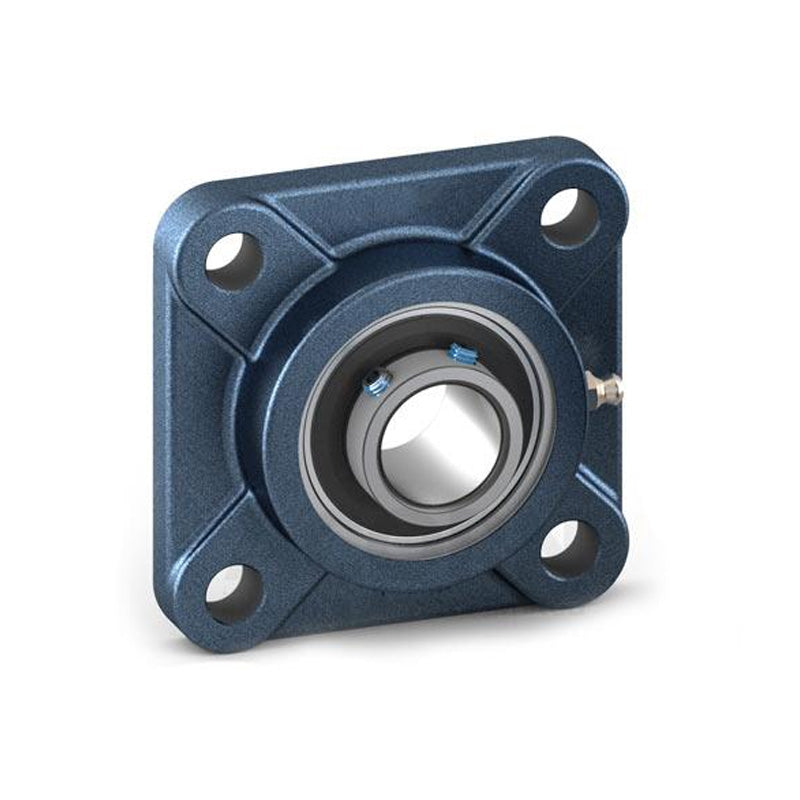

UCFX06-20 Imperial Four Bolt Cast Iron Square Housing with 1-1/4 inch Bore Insert
UCFX06-20 Imperial Four Bolt Cast Iron Square Housing with 1-1/4 inch Bore Insert
Regular price
Rs. 2,572.03
ex VAT
Regular price
Sale price
Rs. 2,572.03
ex VAT
Equivalent to: MSF1-1/4
In stock
Price Break
10+
Rs. 2,289.11
19+
Rs. 2,160.51
29+
Rs. 2,134.78
39+
Rs. 2,109.06
49+
Rs. 2,083.34
74+
Rs. 2,057.62
99+
Rs. 1,929.02
199+
Rs. 1,903.30
249+
Rs. 1,877.58
499+
Rs. 1,851.86
999+
Rs. 1,800.42
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1-1/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 117mm |
| e | 92mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| s | 16mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
