SKU: UCFX.06-19

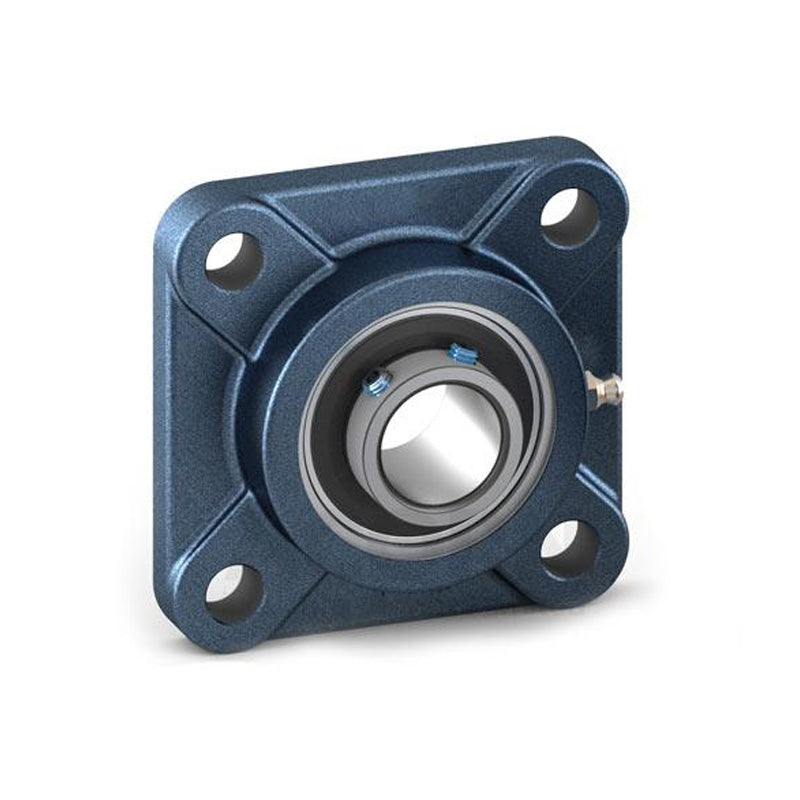

UCFX06-19 Imperial Four Bolt Cast Iron Square Housing with 1-3/16 inch Bore Insert
UCFX06-19 Imperial Four Bolt Cast Iron Square Housing with 1-3/16 inch Bore Insert
Regular price
Rs. 3,348.97
Regular price
Sale price
Rs. 3,348.97
Taxes included.
Equivalent to: MSF1-3/16
In stock
Price Break
10+
Rs. 2,980.58
19+
Rs. 2,813.13
29+
Rs. 2,779.65
39+
Rs. 2,746.16
49+
Rs. 2,712.67
74+
Rs. 2,679.18
99+
Rs. 2,511.73
199+
Rs. 2,478.24
249+
Rs. 2,444.75
499+
Rs. 2,411.26
999+
Rs. 2,344.28
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1-3/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 117mm |
| e | 92mm |
| i | 19mm |
| g | 14mm |
| L | 34mm |
| s | 16mm |
| Z | 44.4mm |
| Bi | 42.9mm |
| n | 17.5mm |
| Bolt Size | M14 |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
