SKU: UCFX.05-16

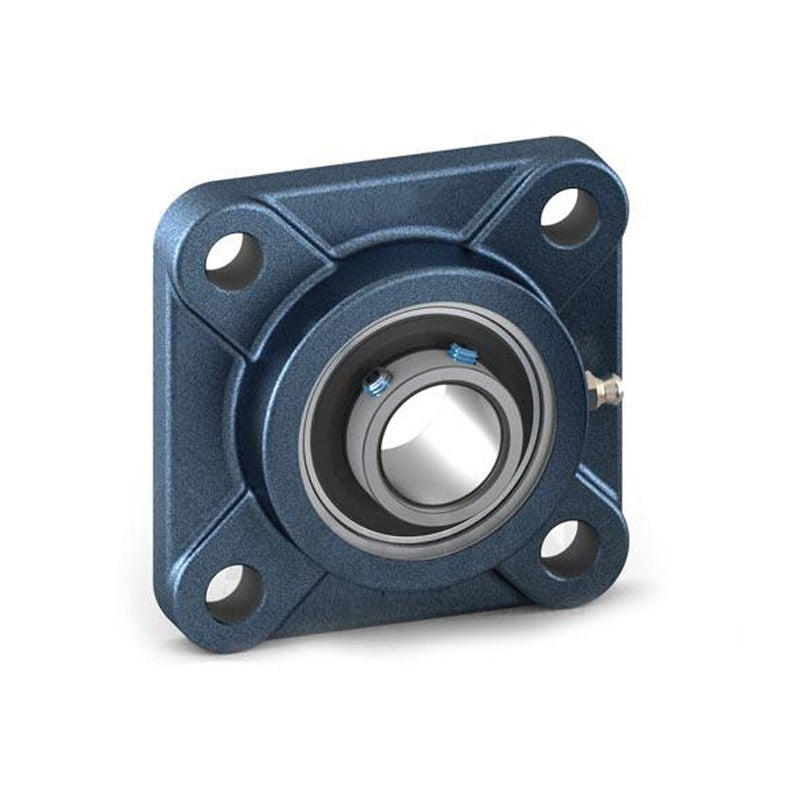

UCFX05-16 Imperial Four Bolt Cast Iron Square Housing with 1 inch Bore Insert
UCFX05-16 Imperial Four Bolt Cast Iron Square Housing with 1 inch Bore Insert
Regular price
Rs. 1,281.47
Regular price
Sale price
Rs. 1,281.47
Taxes included.
Equivalent to: MSF1
In stock
Price Break
10+
Rs. 1,140.51
19+
Rs. 1,076.43
29+
Rs. 1,063.62
39+
Rs. 1,050.81
49+
Rs. 1,037.99
74+
Rs. 1,025.18
99+
Rs. 961.10
199+
Rs. 948.29
249+
Rs. 935.47
499+
Rs. 922.66
999+
Rs. 897.03
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCFX
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 1 inch |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 13mm |
| L | 30mm |
| s | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
