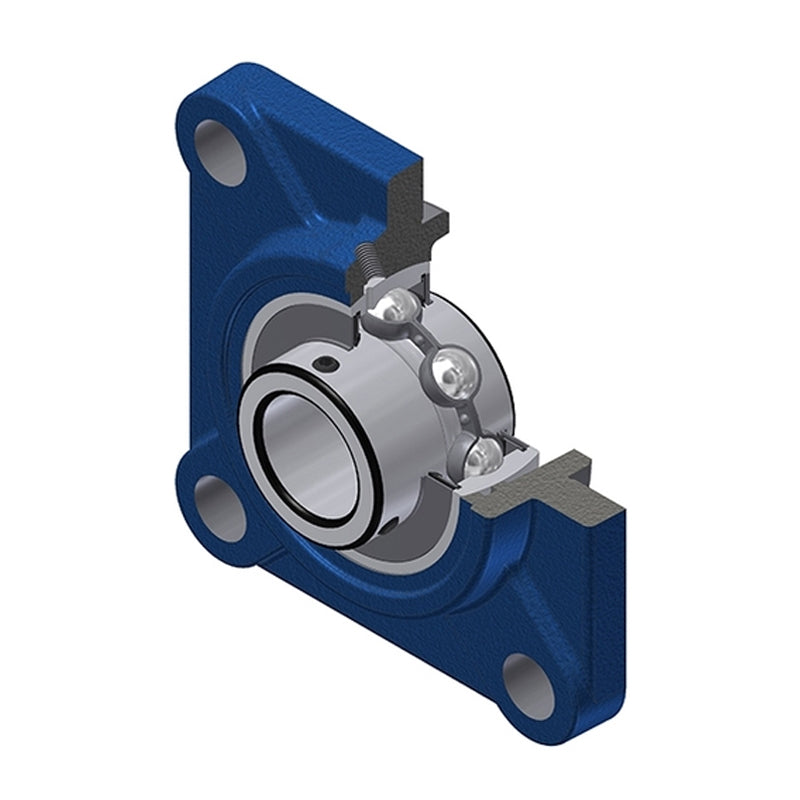

SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 143,579.45
Regular price
Sale price
Rs. 143,579.45
Taxes included.
In stock
Price Break
10+
Rs. 127,785.71
19+
Rs. 120,606.74
29+
Rs. 119,170.94
39+
Rs. 117,735.15
49+
Rs. 116,299.35
74+
Rs. 114,863.56
99+
Rs. 107,684.59
199+
Rs. 106,248.79
249+
Rs. 104,813.00
499+
Rs. 103,377.20
999+
Rs. 100,505.62
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 145mm
- Style:
- UCFS
- Bolt Hole Centres:
- 350mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 145mm |
| A | 125mm |
| A1 | 55mm |
| A2 | 131mm |
| A4 | 95mm |
| B | 145mm |
| e | 45mm |
| H3 | 400mm |
| J | 350mm |
| L | 450mm |
| N | 41mm |
| S | 59mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 120 Nm |
| Mass | 92.7 kg |
