SKU: UCFS324-SNR

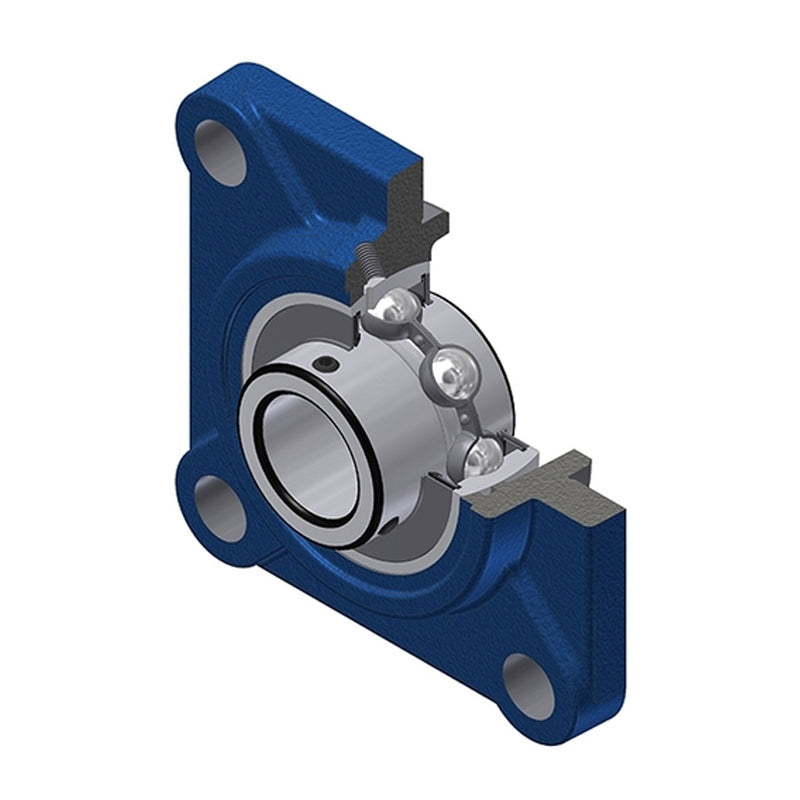

SNR UCFS324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
SNR UCFS324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 90,217.39
Regular price
Sale price
Rs. 90,217.39
Taxes included.
In stock
Price Break
10+
Rs. 80,293.48
19+
Rs. 75,782.61
29+
Rs. 74,880.43
39+
Rs. 73,978.26
49+
Rs. 73,076.09
74+
Rs. 72,173.91
99+
Rs. 67,663.04
199+
Rs. 66,760.87
249+
Rs. 65,858.69
499+
Rs. 64,956.52
999+
Rs. 63,152.17
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 120mm
- Style:
- UCFS
- Bolt Hole Centres:
- 290mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 120mm |
| A | 110mm |
| A1 | 40mm |
| A2 | 110mm |
| A4 | 80mm |
| B | 126mm |
| e | 35mm |
| H3 | 330mm |
| J | 290mm |
| L | 370mm |
| N | 41mm |
| S | 51mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 228 kN |
| Static load C0 | 208 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 75 Nm |
| Mass | 51.7 kg |
