SKU: UCFS320-SNR

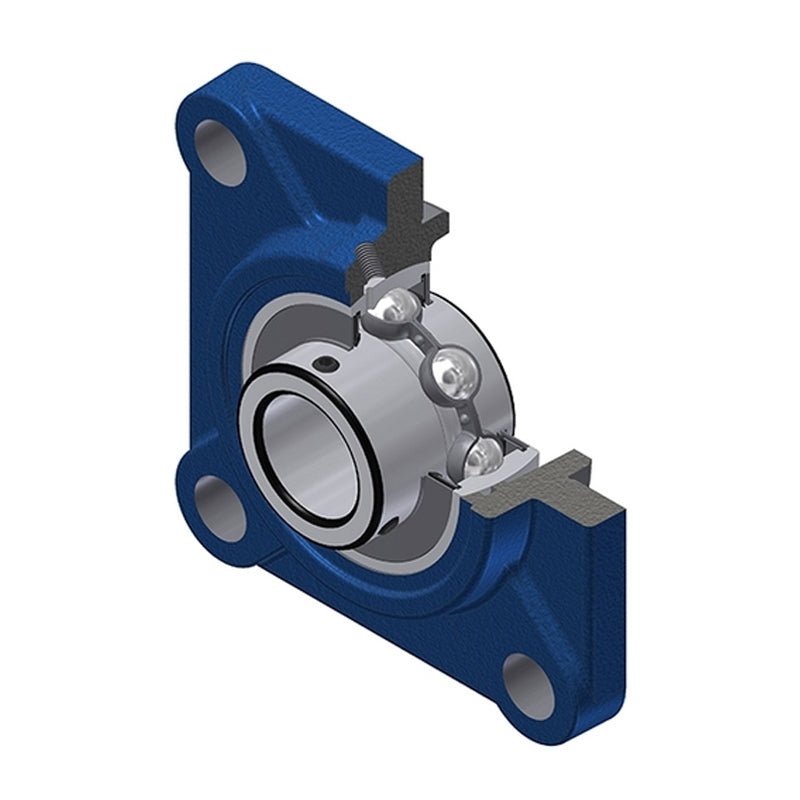

SNR UCFS320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
SNR UCFS320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 48,563.92
Regular price
Sale price
Rs. 48,563.92
Taxes included.
In stock
Price Break
10+
Rs. 43,221.89
19+
Rs. 40,793.69
29+
Rs. 40,308.05
39+
Rs. 39,822.41
49+
Rs. 39,336.78
74+
Rs. 38,851.14
99+
Rs. 36,422.94
199+
Rs. 35,937.30
249+
Rs. 35,451.66
499+
Rs. 34,966.02
999+
Rs. 33,994.74
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCFS
- Bolt Hole Centres:
- 242mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 94mm |
| A1 | 32mm |
| A2 | 105mm |
| A4 | 74mm |
| B | 108mm |
| e | 39mm |
| H3 | 260mm |
| J | 242mm |
| L | 310mm |
| N | 38mm |
| S | 42mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 75 Nm |
| Mass | 29.4 kg |
