SKU: UCFS318-SNR

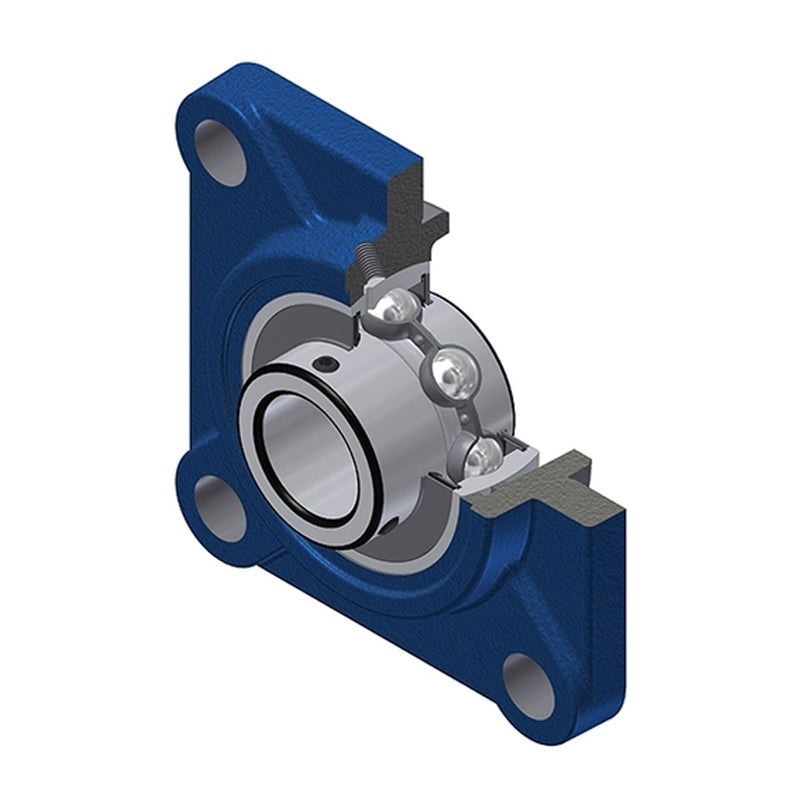

SNR UCFS318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
SNR UCFS318 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 36,381.65
Regular price
Sale price
Rs. 36,381.65
Taxes included.
In stock
Price Break
10+
Rs. 32,379.67
19+
Rs. 30,560.59
29+
Rs. 30,196.77
39+
Rs. 29,832.95
49+
Rs. 29,469.14
74+
Rs. 29,105.32
99+
Rs. 27,286.24
199+
Rs. 26,922.42
249+
Rs. 26,558.60
499+
Rs. 26,194.79
999+
Rs. 25,467.16
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCFS
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 76mm |
| A1 | 30mm |
| A2 | 80mm |
| A4 | 56mm |
| B | 96mm |
| e | 24mm |
| H3 | 240mm |
| J | 216mm |
| L | 280mm |
| N | 35mm |
| S | 40mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 64 Nm |
| Mass | 21.27 kg |
