SKU: UCFS314D1-NTN
NTN UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCFS314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 34,046.59
Regular price
Sale price
Rs. 34,046.59
Taxes included.
In stock
Price Break
5+
Rs. 33,706.12
10+
Rs. 32,344.26
20+
Rs. 31,663.33
50+
Rs. 30,641.93
100+
Rs. 29,961.00
500+
Rs. 28,258.67
1000+
Rs. 23,832.61
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFS
- Bolt Hole Centres:
- 178mm

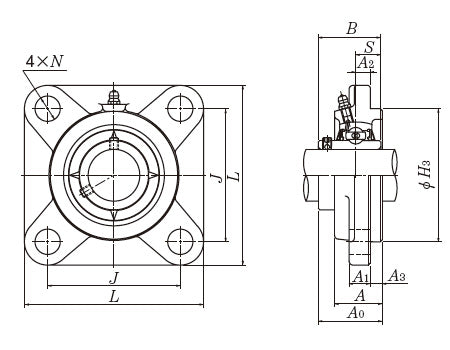

Technical
Technical
| Shaft diameter | 70mm |
|---|---|
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 18mm |
| N | 25mm |
| A<sub>3</sub> | 18mm |
| A<sub>1</sub> | 25mm |
| A | 61mm |
| H<sub>3</sub> | 185mm |
| A<sub>0</sub> | 81mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| Mass | 10 kg |
