SKU: UCFS314-SNR

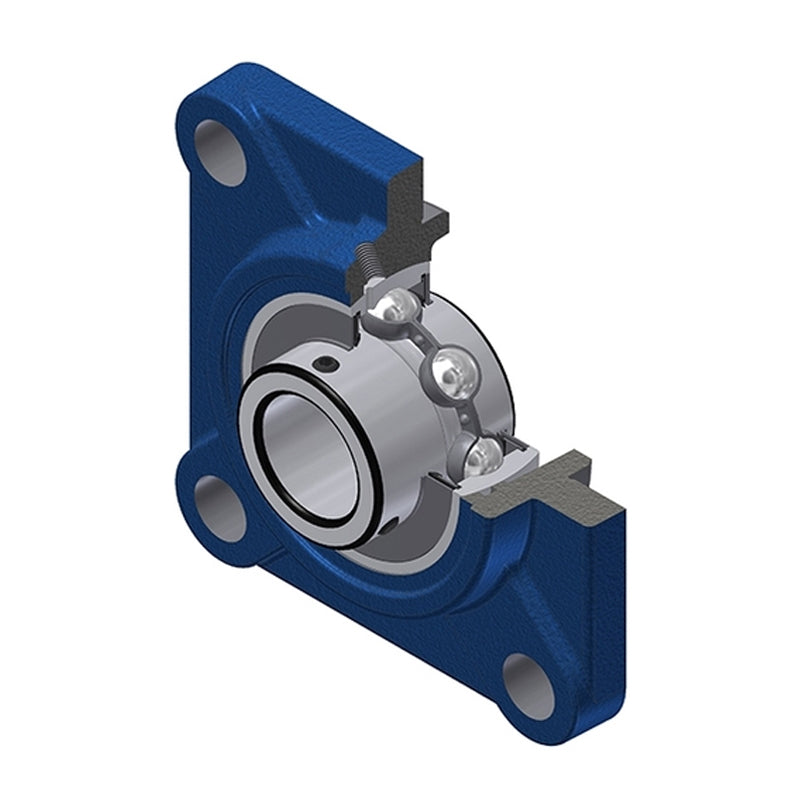

SNR UCFS314 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
SNR UCFS314 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 22,702.85
Regular price
Sale price
Rs. 22,702.85
Taxes included.
In stock
Price Break
5+
Rs. 22,475.82
10+
Rs. 21,567.71
20+
Rs. 21,113.65
50+
Rs. 20,432.57
100+
Rs. 19,978.51
500+
Rs. 18,843.37
1000+
Rs. 15,892.00
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFS
- Bolt Hole Centres:
- 178mm
Technical
Technical

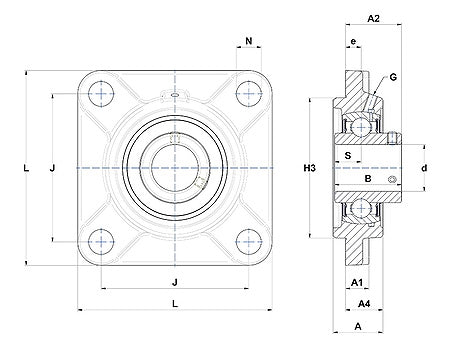

| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 61mm |
| A1 | 25mm |
| A2 | 63mm |
| A4 | 43mm |
| B | 78mm |
| e | 18mm |
| H3 | 185mm |
| J | 178mm |
| L | 226mm |
| N | 25mm |
| S | 33mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 104.26 kN |
| Static load C0 | 68 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 10.95 kg |
