SKU: UCFS312-SNR

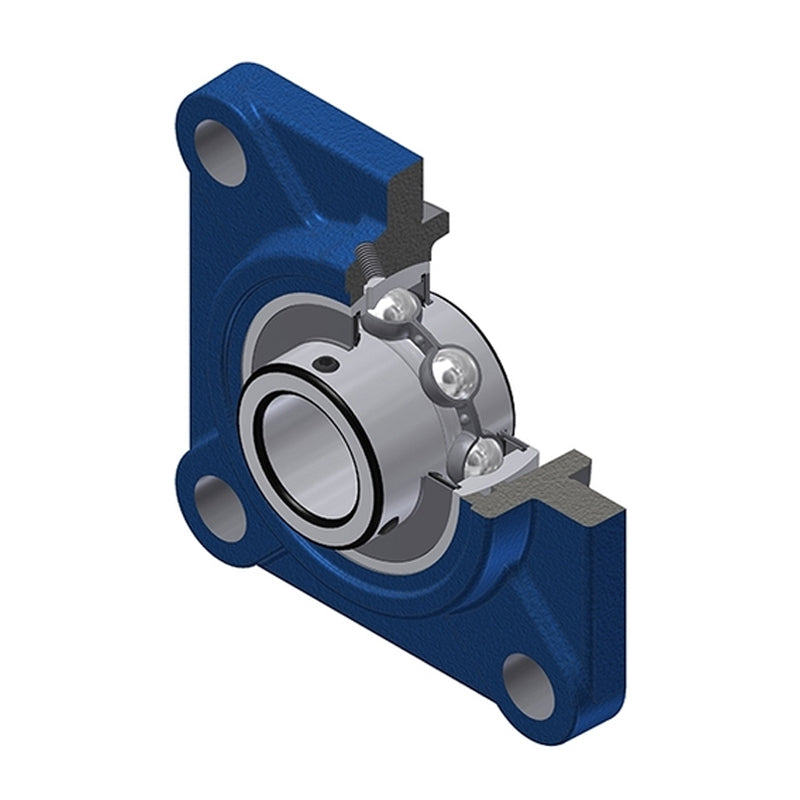

SNR UCFS312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCFS312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 15,218.87
Regular price
Sale price
Rs. 15,218.87
Taxes included.
In stock
Price Break
10+
Rs. 13,544.79
19+
Rs. 12,783.85
29+
Rs. 12,631.66
39+
Rs. 12,479.47
49+
Rs. 12,327.28
74+
Rs. 12,175.10
99+
Rs. 11,414.15
199+
Rs. 11,261.96
249+
Rs. 11,109.78
499+
Rs. 10,957.59
999+
Rs. 10,653.21
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFS
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 56mm |
| A1 | 22mm |
| A2 | 64mm |
| A4 | 42mm |
| B | 71mm |
| e | 19mm |
| H3 | 160mm |
| J | 150mm |
| L | 195mm |
| N | 23mm |
| S | 26mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 81.6 kN |
| Static load C0 | 51.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.5 kg |
