SKU: UCFS311-SNR

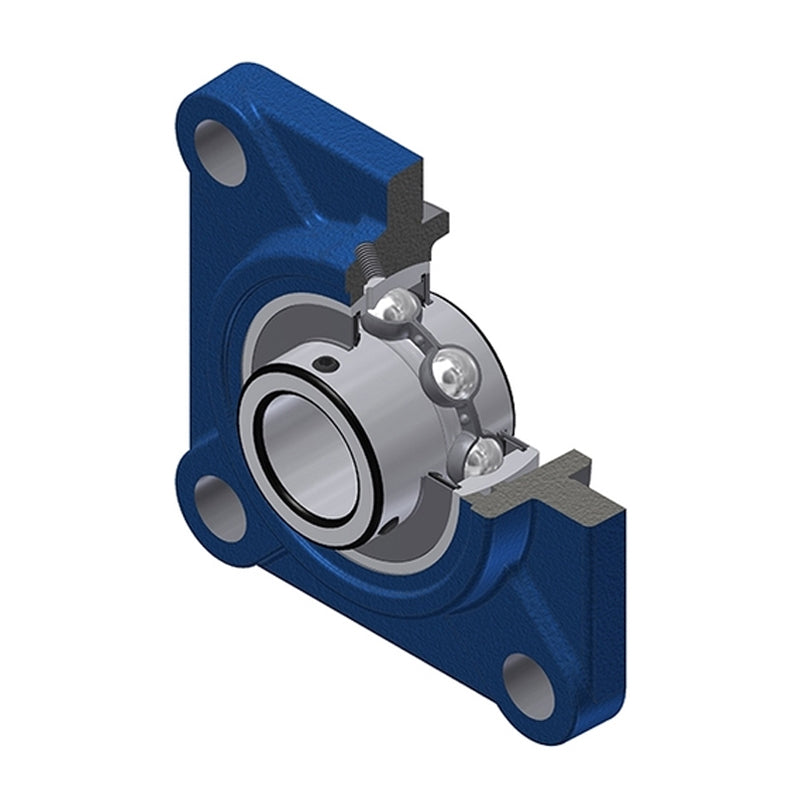

SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 12,750.67
Regular price
Sale price
Rs. 12,750.67
Taxes included.
In stock
Price Break
10+
Rs. 11,348.10
19+
Rs. 10,710.56
29+
Rs. 10,583.06
39+
Rs. 10,455.55
49+
Rs. 10,328.04
74+
Rs. 10,200.54
99+
Rs. 9,563.00
199+
Rs. 9,435.50
249+
Rs. 9,307.99
499+
Rs. 9,180.48
999+
Rs. 8,925.47
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFS
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 52mm |
| A1 | 20mm |
| A2 | 58mm |
| A4 | 39mm |
| B | 66mm |
| e | 17mm |
| H3 | 150mm |
| J | 140mm |
| L | 185mm |
| N | 23mm |
| S | 25mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.7 kg |
