SKU: UCFS310-SNR

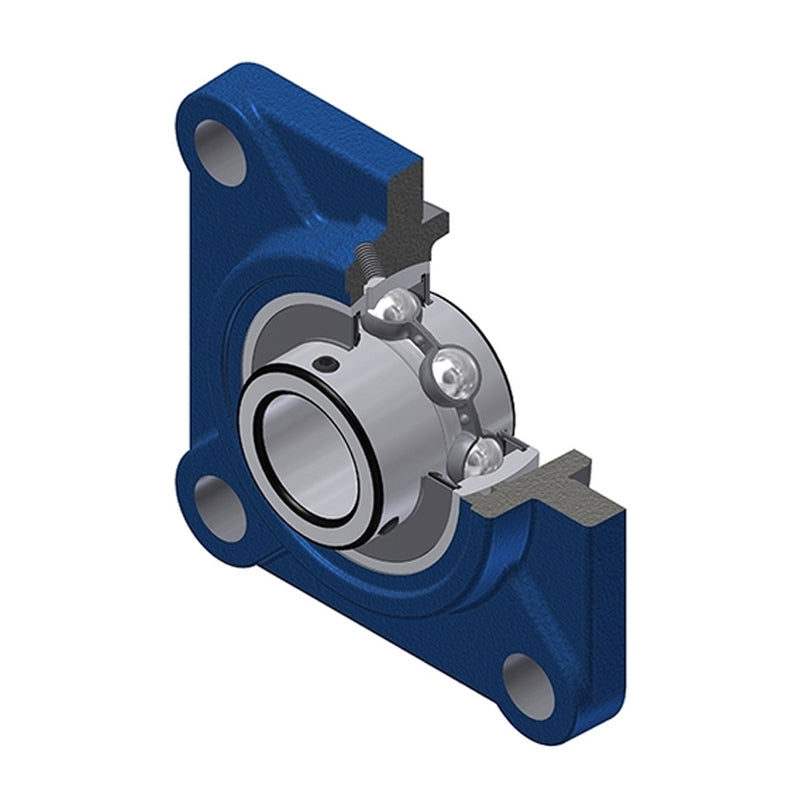

SNR UCFS310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
SNR UCFS310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 10,489.86
Regular price
Sale price
Rs. 10,489.86
Taxes included.
In stock
Price Break
10+
Rs. 9,335.98
19+
Rs. 8,811.48
29+
Rs. 8,706.58
39+
Rs. 8,601.69
49+
Rs. 8,496.79
74+
Rs. 8,391.89
99+
Rs. 7,867.40
199+
Rs. 7,762.50
249+
Rs. 7,657.60
499+
Rs. 7,552.70
999+
Rs. 7,342.90
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFS
- Bolt Hole Centres:
- 132mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 48mm |
| A1 | 19mm |
| A2 | 55mm |
| A4 | 36mm |
| B | 61mm |
| e | 16mm |
| H3 | 140mm |
| J | 132mm |
| L | 175mm |
| N | 23mm |
| S | 22mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 37.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 4.85 kg |
