SKU: UCFLZ210-SNR

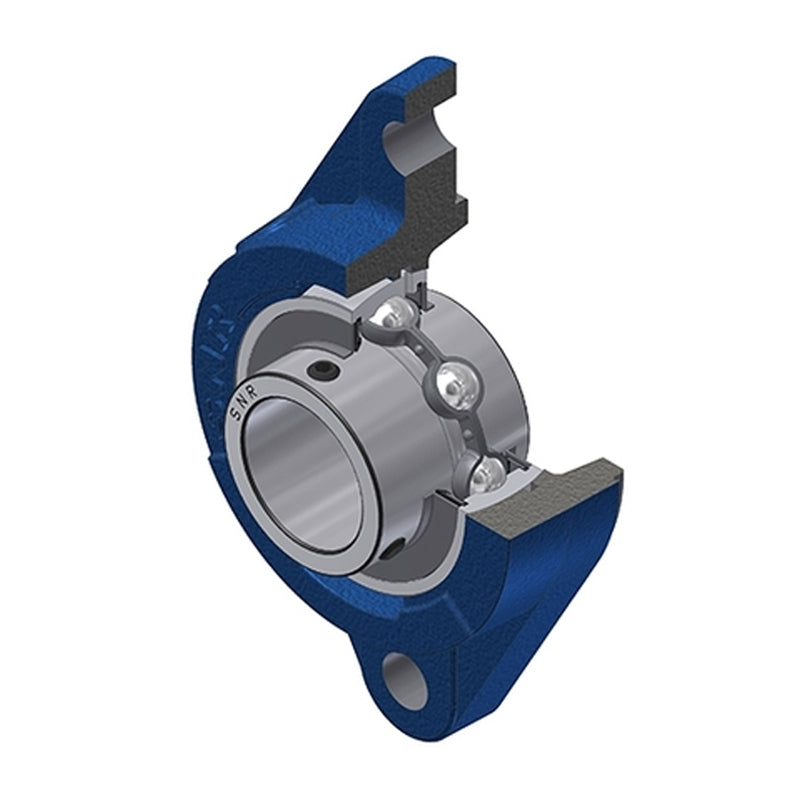

SNR UCFLZ210 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
SNR UCFLZ210 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 6,416.30
Regular price
Sale price
Rs. 6,416.30
Taxes included.
In stock
Price Break
10+
Rs. 5,710.51
19+
Rs. 5,389.69
29+
Rs. 5,325.53
39+
Rs. 5,261.37
49+
Rs. 5,197.20
74+
Rs. 5,133.04
99+
Rs. 4,812.23
199+
Rs. 4,748.06
249+
Rs. 4,683.90
499+
Rs. 4,619.74
999+
Rs. 4,491.41
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFLZ
- Bolt Hole Centres:
- 157mm
Technical
Technical

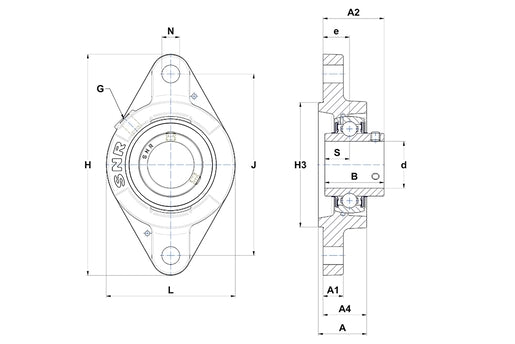

| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 41mm |
| A1 | 13mm |
| A2 | 56.6mm |
| A4 | 37mm |
| B | 51.6mm |
| e | 24mm |
| H | 190mm |
| H3 | 105mm |
| J | 157mm |
| L | 116mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.1 kg |
