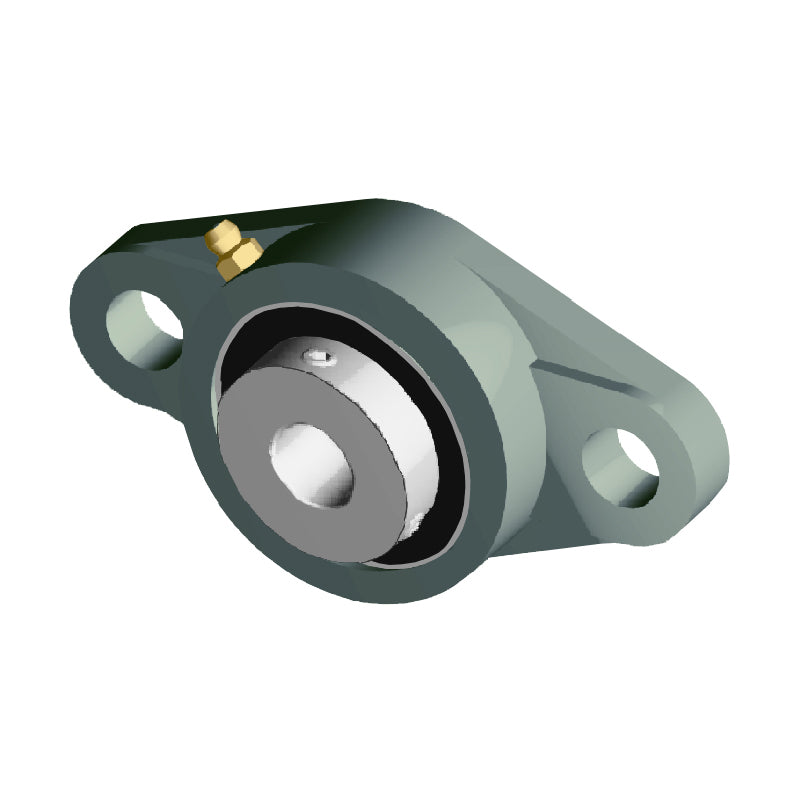

NTN UCFLX10D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
NTN UCFLX10D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 6,991.10
Regular price
Sale price
Rs. 6,991.10
Taxes included.
In stock
Price Break
10+
Rs. 6,222.08
19+
Rs. 5,872.52
29+
Rs. 5,802.61
39+
Rs. 5,732.70
49+
Rs. 5,662.79
74+
Rs. 5,592.88
99+
Rs. 5,243.33
199+
Rs. 5,173.41
249+
Rs. 5,103.50
499+
Rs. 5,033.59
999+
Rs. 4,893.77
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| H | 216mm |
| J | 184mm |
| A<sub>2</sub> | 26mm |
| A<sub>1</sub> | 18mm |
| A | 44mm |
| N | 19mm |
| L | 133mm |
| A<sub>0</sub> | 59.4mm |
| B | 55.6mm |
| S | 22.2mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 3 kg |
