SKU: UCFLX.10

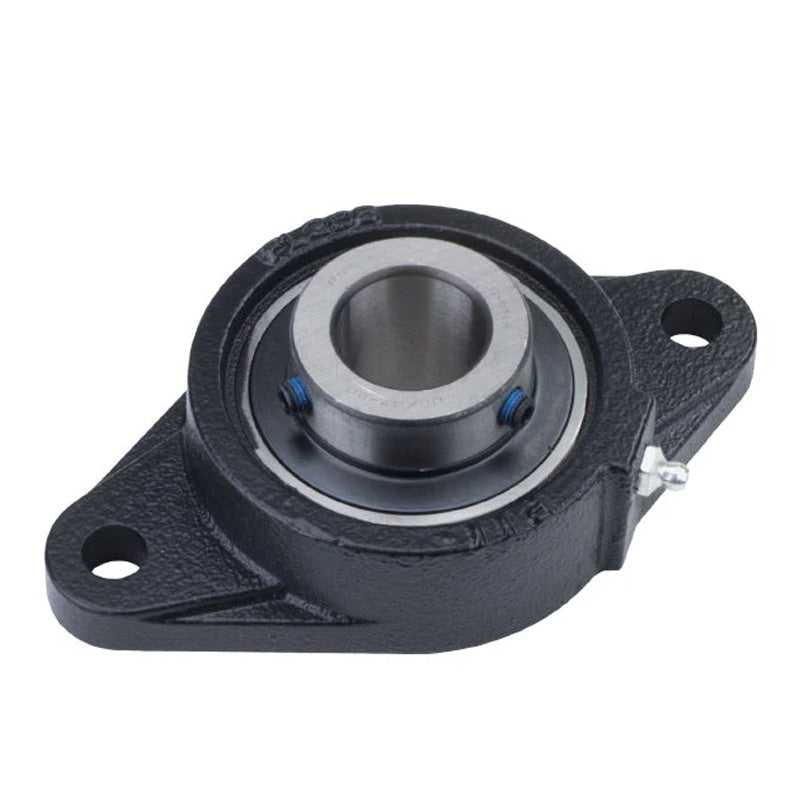

UCFLX10 Metric Two Bolt Oval Cast Iron Housing with 50mm Bore Insert
UCFLX10 Metric Two Bolt Oval Cast Iron Housing with 50mm Bore Insert
Regular price
Rs. 5,658.43
Regular price
Sale price
Rs. 5,658.43
Taxes included.
Equivalent to: MSFT50
In stock
Price Break
10+
Rs. 5,036.00
19+
Rs. 4,753.08
29+
Rs. 4,696.50
39+
Rs. 4,639.91
49+
Rs. 4,583.33
74+
Rs. 4,526.74
99+
Rs. 4,243.82
199+
Rs. 4,187.24
249+
Rs. 4,130.65
499+
Rs. 4,074.07
999+
Rs. 3,960.90
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT50
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 216mm |
| e | 184mm |
| i | 184mm |
| g | 18mm |
| l | 44mm |
| s | 19mm |
| b | 133mm |
| z | 59.4mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt | M16 |
| Weight | 3.7 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
