SKU: UCFLX.08-24

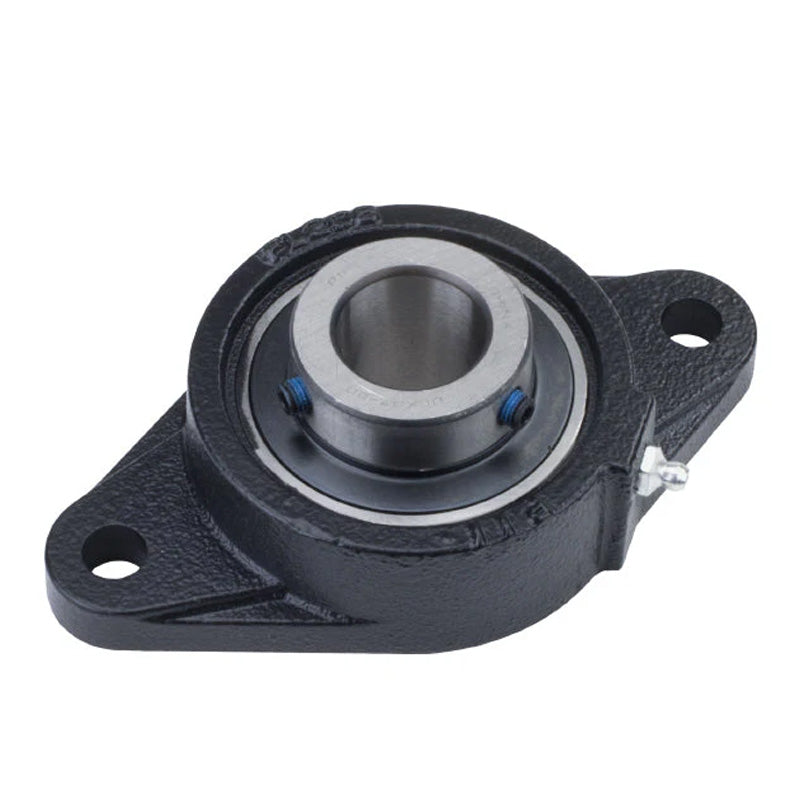

UCFLX08-24 Imperial Two Bolt Oval Cast Iron Housing with 1-1/2 inch Bore Insert
UCFLX08-24 Imperial Two Bolt Oval Cast Iron Housing with 1-1/2 inch Bore Insert
Regular price
Rs. 2,991.80
Regular price
Sale price
Rs. 2,991.80
Taxes included.
In stock
Price Break
10+
Rs. 2,662.70
19+
Rs. 2,513.11
29+
Rs. 2,483.19
39+
Rs. 2,453.28
49+
Rs. 2,423.36
74+
Rs. 2,393.44
99+
Rs. 2,243.85
199+
Rs. 2,213.93
249+
Rs. 2,184.01
499+
Rs. 2,154.10
999+
Rs. 2,094.26
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 148.03mm = 5.828 (5-53/64) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| a | 179mm = 7-1/16 inch |
| e | 148mm = 5-53/64 inch |
| i | 148mm = 5-53/64 inch |
| g | 16mm = 5/8 inch |
| l | 40mm = 1-9/16 inch |
| s | 16mm = 5/8 inch |
| b | 111mm = 4-3/8 inch |
| z | 52.2mm = 2-1/16 inch |
| Bi | 49.2mm = 1.937 inch |
| n | 19mm = 0.748 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 2 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
