SKU: UCFLX.06-20

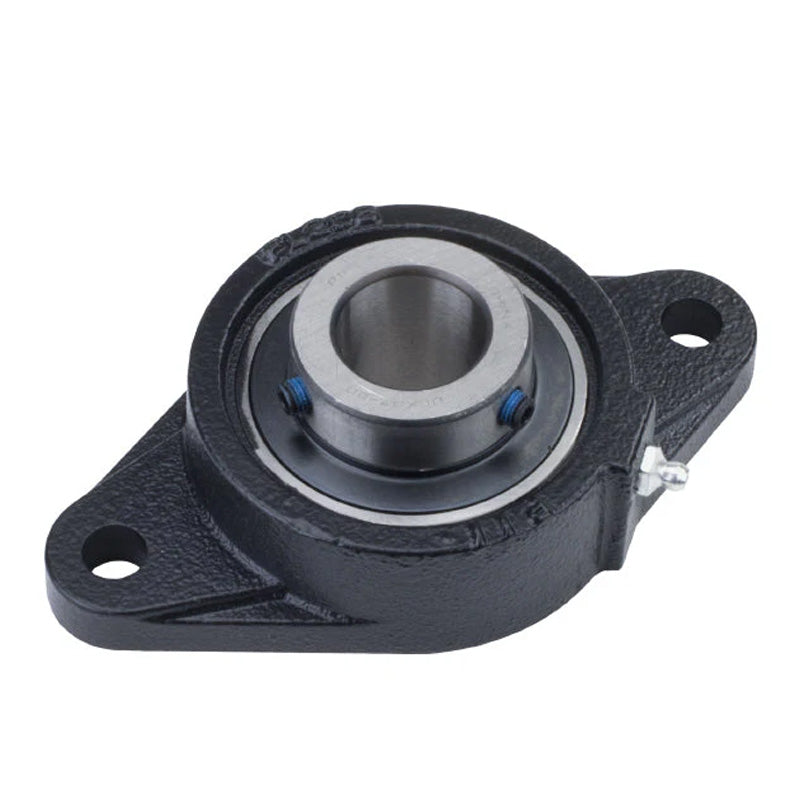

UCFLX06-20 Imperial Two Bolt Oval Cast Iron Housing with 1-1/4 inch Bore Insert
UCFLX06-20 Imperial Two Bolt Oval Cast Iron Housing with 1-1/4 inch Bore Insert
Regular price
Rs. 2,751.12
Regular price
Sale price
Rs. 2,751.12
Taxes included.
In stock
Price Break
10+
Rs. 2,448.50
19+
Rs. 2,310.94
29+
Rs. 2,283.43
39+
Rs. 2,255.92
49+
Rs. 2,228.41
74+
Rs. 2,200.90
99+
Rs. 2,063.34
199+
Rs. 2,035.83
249+
Rs. 2,008.32
499+
Rs. 1,980.81
999+
Rs. 1,925.78
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 130.18mm = 5.125 (5-1/8) inch
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| a | 155mm = 6-5/32 inch |
| e | 130mm = 5-1/8 inch |
| i | 130mm = 5-1/8 inch |
| g | 15mm = 19/34 |
| l | 34mm = 1-11/32 inch |
| s | 16mm = 5/8 inch |
| b | 95mm = 3-3/4 inch |
| z | 44.4mm = 1-3/4 inch |
| Bi | 42.9mm = 1.689 inch |
| n | 17.5mm = 0.689 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
