SKU: UCFLX.06-19

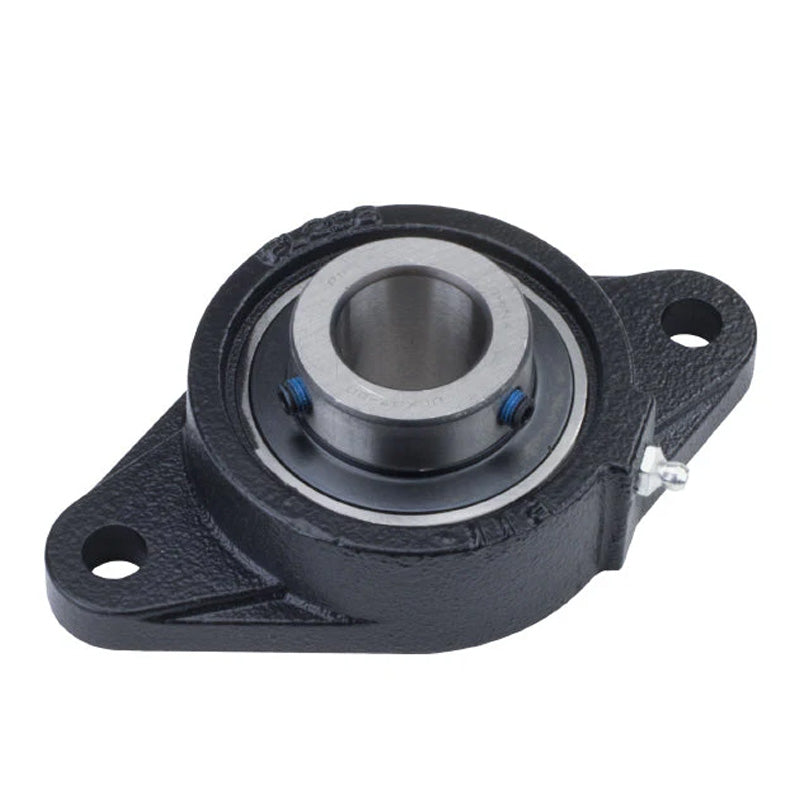

UCFLX06-19 Imperial Two Bolt Oval Cast Iron Housing with 1-3/16 inch Bore Insert
UCFLX06-19 Imperial Two Bolt Oval Cast Iron Housing with 1-3/16 inch Bore Insert
Regular price
Rs. 1,857.55
Regular price
Sale price
Rs. 1,857.55
Taxes included.
Equivalent to: MSFT1-3/16
In stock
Price Break
10+
Rs. 1,653.22
19+
Rs. 1,560.34
29+
Rs. 1,541.77
39+
Rs. 1,523.19
49+
Rs. 1,504.62
74+
Rs. 1,486.04
99+
Rs. 1,393.16
199+
Rs. 1,374.59
249+
Rs. 1,356.01
499+
Rs. 1,337.44
999+
Rs. 1,300.29
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT1-3/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 130.18mm = 5.125 (5-1/8) inch
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| a | 155mm = 6-5/32 inch |
| e | 130mm = 5-1/8 inch |
| i | 130mm = 5-1/8 inch |
| g | 15mm = 19/33 |
| l | 34mm = 1-11/32 inch |
| s | 16mm = 5/8 inch |
| b | 95mm = 3-3/4 inch |
| z | 44.4mm = 1-3/4 inch |
| Bi | 42.9mm = 1.689 inch |
| n | 17.5mm = 0.689 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 1.4 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
