SKU: UCFLX.05

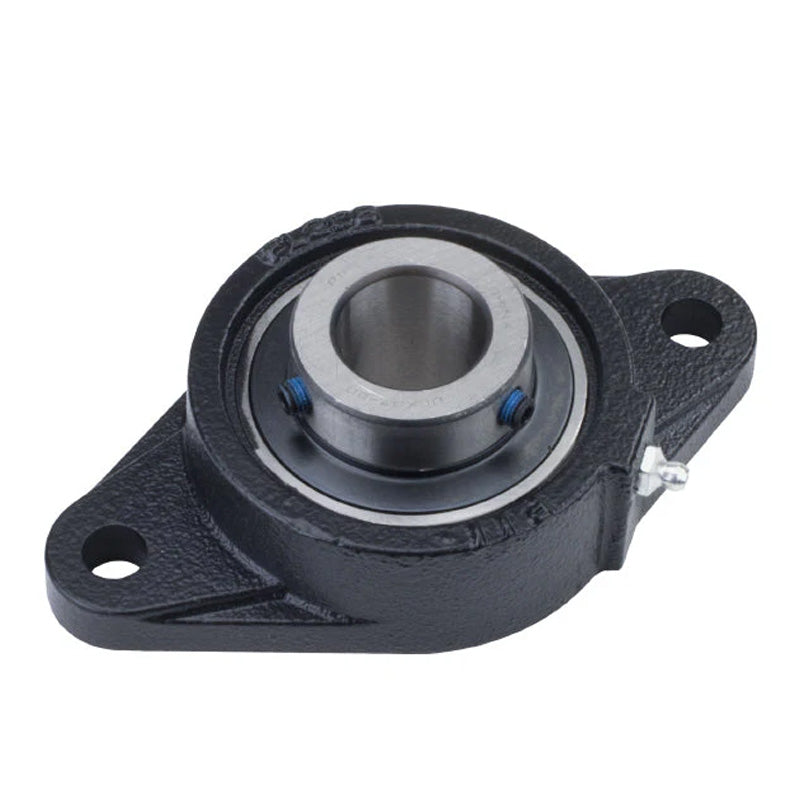

UCFLX05 Metric Two Bolt Oval Cast Iron Housing with 25mm Bore Insert
UCFLX05 Metric Two Bolt Oval Cast Iron Housing with 25mm Bore Insert
Regular price
Rs. 1,116.32
Regular price
Sale price
Rs. 1,116.32
Taxes included.
Equivalent to: MSFT25
In stock
Price Break
10+
Rs. 993.52
19+
Rs. 937.71
29+
Rs. 926.55
39+
Rs. 915.38
49+
Rs. 904.22
74+
Rs. 893.06
99+
Rs. 837.24
199+
Rs. 826.08
249+
Rs. 814.91
499+
Rs. 803.75
999+
Rs. 781.42
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 117mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 141mm |
| e | 117mm |
| i | 117mm |
| g | 13mm |
| l | 30mm |
| s | 12mm |
| b | 83mm |
| z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt | M10 |
| Weight | 1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
