SKU: UCFLE213-40-SNR

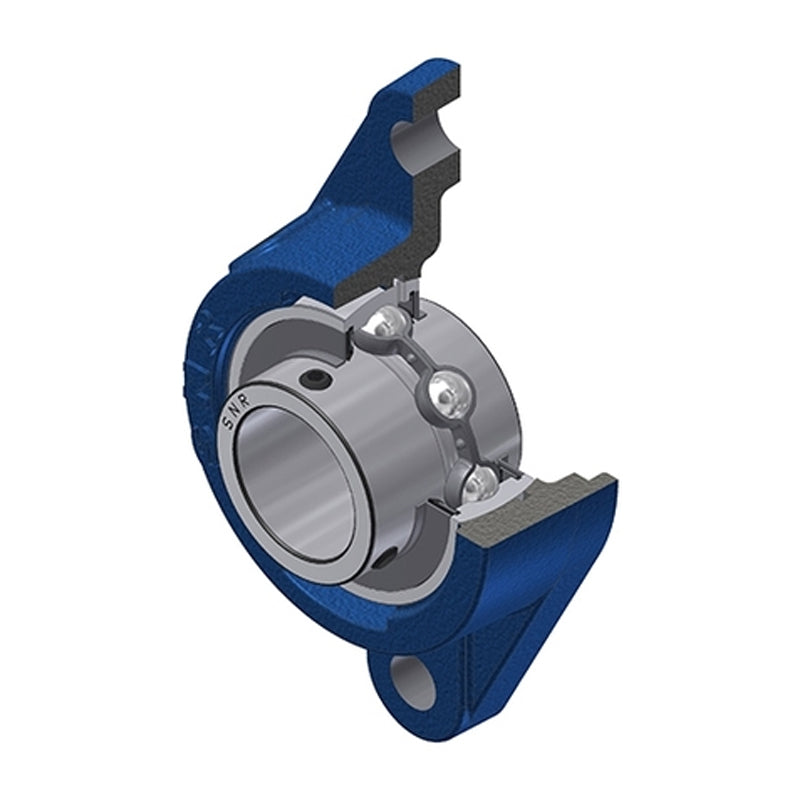

SNR UCFLE213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCFLE213-40 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 17,008.57
Regular price
Sale price
Rs. 17,008.57
Taxes included.
In stock
Price Break
5+
Rs. 16,838.48
10+
Rs. 16,158.14
20+
Rs. 15,817.97
50+
Rs. 15,307.71
100+
Rs. 14,967.54
500+
Rs. 14,117.11
1000+
Rs. 11,906.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/2 inch |
| A | 57mm |
| A1 | 18mm |
| A2 | 77.7mm |
| B | 65.1mm |
| e | 38mm |
| H | 258mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 5.64 kg |
