SKU: UCFL328-SNR

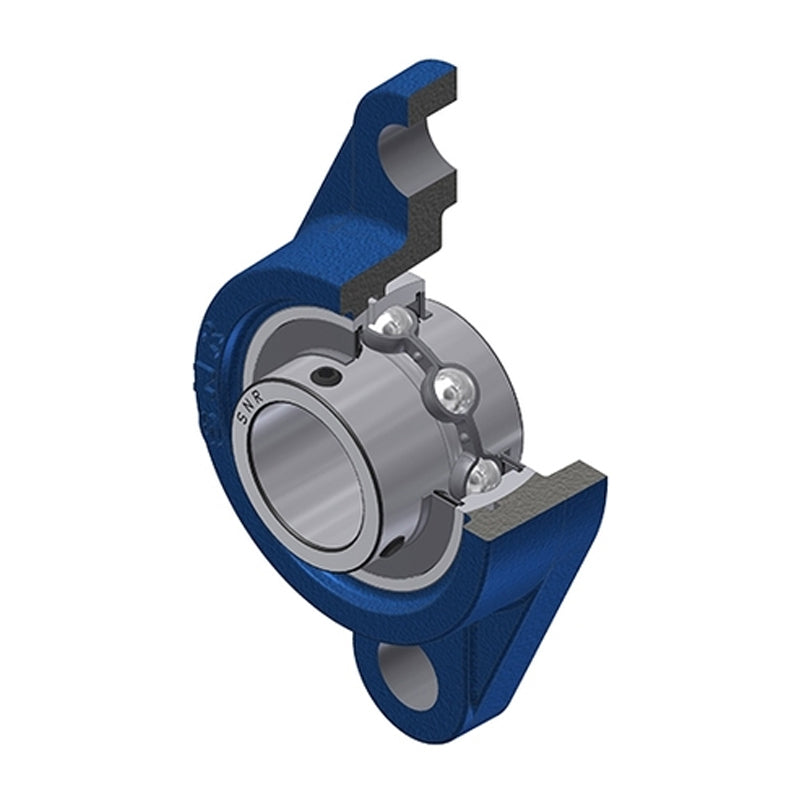

SNR UCFL328 Metric Two Bolt Oval Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
SNR UCFL328 Metric Two Bolt Oval Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 193,122.07
ex VAT
Regular price
Sale price
Rs. 193,122.07
ex VAT
In stock
Price Break
2+
Rs. 183,465.97
5+
Rs. 173,809.86
10+
Rs. 164,153.76
15+
Rs. 154,497.66
20+
Rs. 150,635.21
30+
Rs. 146,772.77
50+
Rs. 127,460.57
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 140mm
- Style:
- UCFL
- Bolt Hole Centres:
- 500mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 140mm |
| A | 125mm |
| A1 | 60mm |
| A2 | 161mm |
| B | 145mm |
| e | 75mm |
| H | 600mm |
| J | 500mm |
| L | 400mm |
| N | 51mm |
| S | 59mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 120 Nm |
| Mass | 76.92 kg |
