SKU: UCFL320-SNR

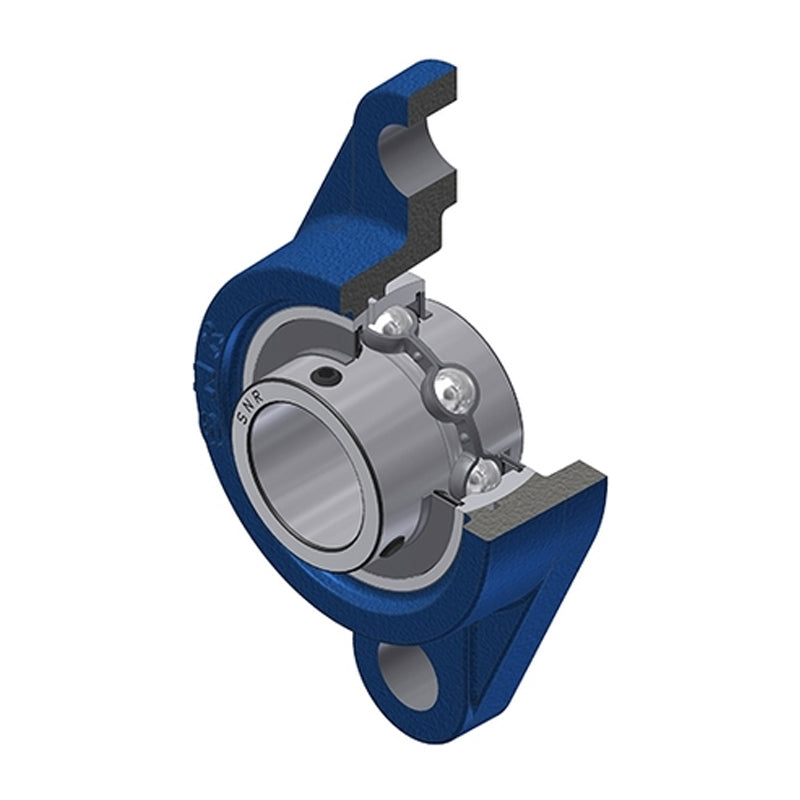

SNR UCFL320 Metric Two Bolt Oval Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
SNR UCFL320 Metric Two Bolt Oval Cast Iron Flange Housing with 100mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 71,606.35
ex VAT
Regular price
Sale price
Rs. 71,606.35
ex VAT
In stock
Price Break
2+
Rs. 68,026.03
5+
Rs. 64,445.72
10+
Rs. 60,865.40
15+
Rs. 57,285.08
20+
Rs. 55,852.95
30+
Rs. 54,420.83
50+
Rs. 47,260.19
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCFL
- Bolt Hole Centres:
- 360mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 94mm |
| A1 | 40mm |
| A2 | 125mm |
| B | 108mm |
| e | 59mm |
| H | 440mm |
| J | 360mm |
| L | 270mm |
| N | 44mm |
| S | 42mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 75 Nm |
| Mass | 25.89 kg |
