SKU: UCFL307-SNR

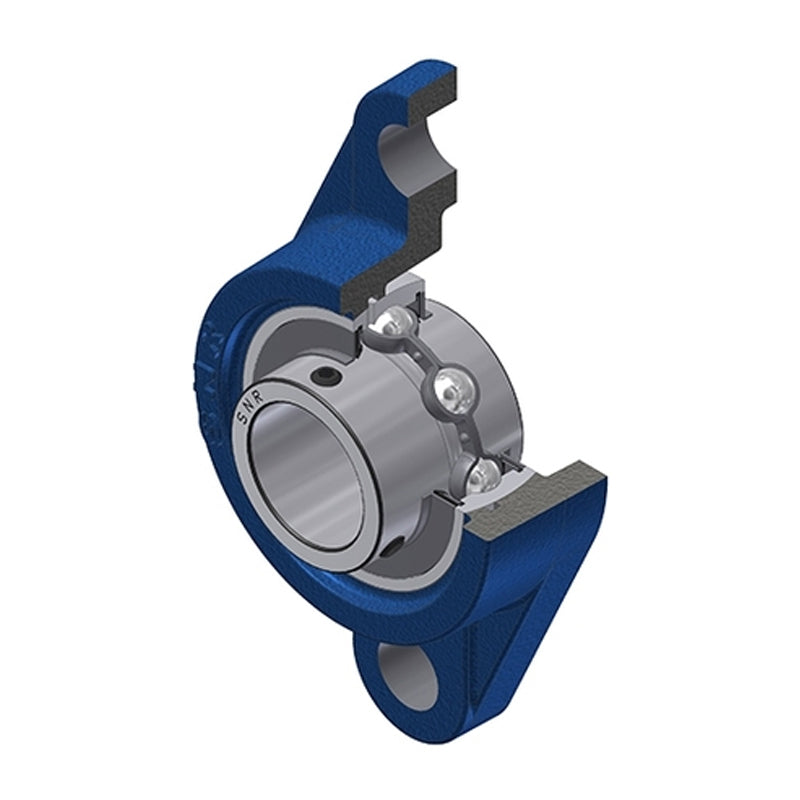

SNR UCFL307 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
SNR UCFL307 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 7,157.53
Regular price
Sale price
Rs. 7,157.53
Taxes included.
In stock
Price Break
10+
Rs. 6,370.20
19+
Rs. 6,012.33
29+
Rs. 5,940.75
39+
Rs. 5,869.17
49+
Rs. 5,797.60
74+
Rs. 5,726.02
99+
Rs. 5,368.15
199+
Rs. 5,296.57
249+
Rs. 5,225.00
499+
Rs. 5,153.42
999+
Rs. 5,010.27
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCFL
- Bolt Hole Centres:
- 141mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 49mm |
| B | 48mm |
| e | 20mm |
| H | 185mm |
| J | 141mm |
| L | 100mm |
| N | 23mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 33.5 kN |
| Static load C0 | 19.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.68 kg |
