SKU: UCFL214-SNR

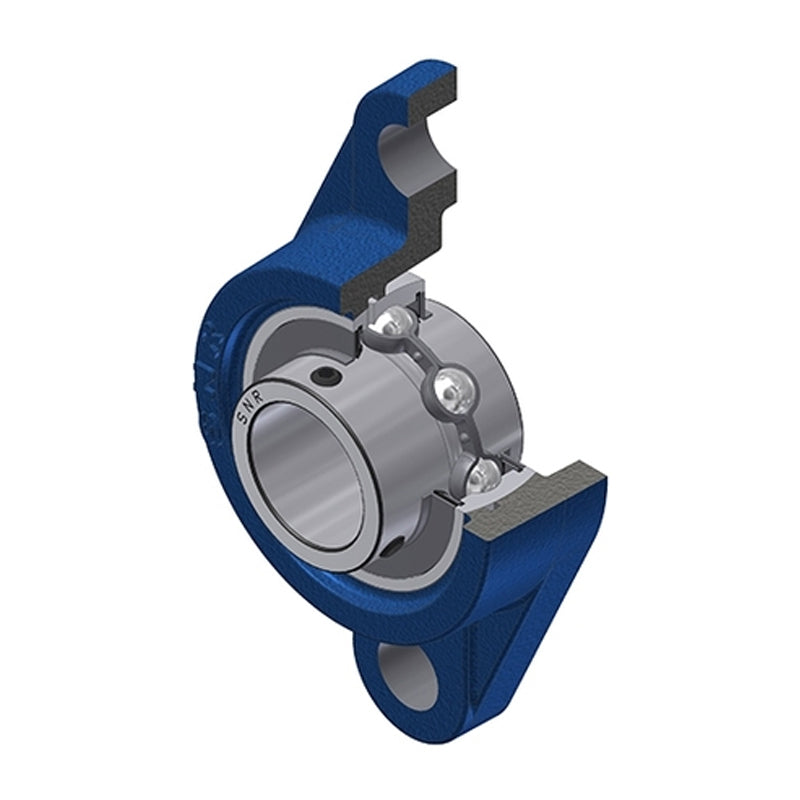

SNR UCFL214 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
SNR UCFL214 Metric Two Bolt Oval Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 11,311.74
Regular price
Sale price
Rs. 11,311.74
Taxes included.
In stock
Price Break
10+
Rs. 10,067.45
19+
Rs. 9,501.86
29+
Rs. 9,388.74
39+
Rs. 9,275.63
49+
Rs. 9,162.51
74+
Rs. 9,049.39
99+
Rs. 8,483.81
199+
Rs. 8,370.69
249+
Rs. 8,257.57
499+
Rs. 8,144.45
999+
Rs. 7,918.22
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 54mm |
| A1 | 20mm |
| A2 | 75.4mm |
| B | 74.6mm |
| e | 31mm |
| H | 265mm |
| J | 216mm |
| L | 160mm |
| N | 23mm |
| S | 30.2mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 5.34 kg |
