SKU: UCFL213-SNR

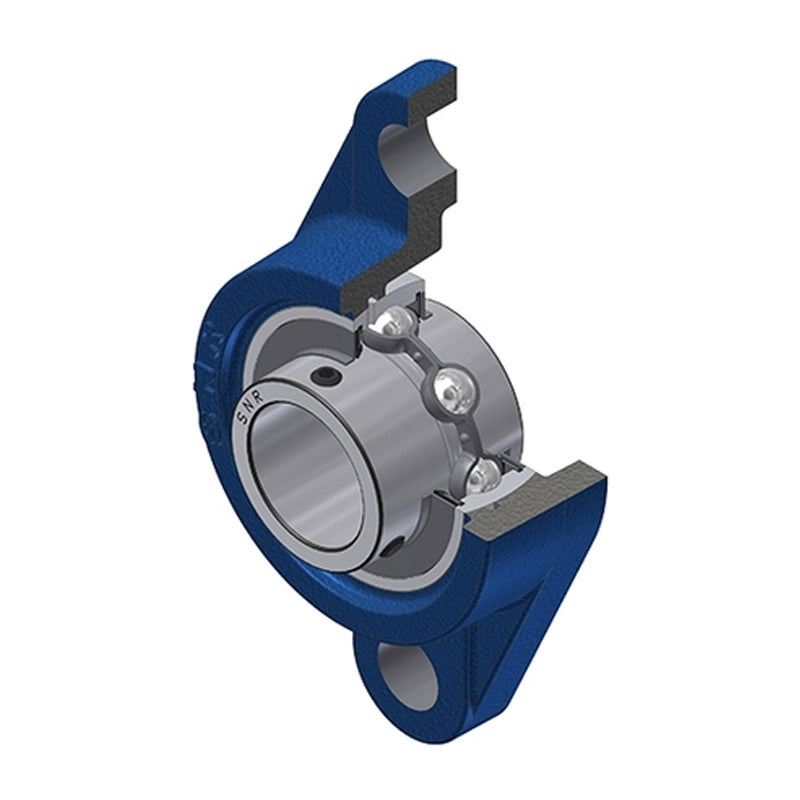

SNR UCFL213 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
SNR UCFL213 Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 9,563.00
Regular price
Sale price
Rs. 9,563.00
Taxes included.
In stock
Price Break
10+
Rs. 8,511.07
19+
Rs. 8,032.92
29+
Rs. 7,937.29
39+
Rs. 7,841.66
49+
Rs. 7,746.03
74+
Rs. 7,650.40
99+
Rs. 7,172.25
199+
Rs. 7,076.62
249+
Rs. 6,980.99
499+
Rs. 6,885.36
999+
Rs. 6,694.10
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 50mm |
| A1 | 20mm |
| A2 | 69.7mm |
| B | 65.1mm |
| e | 30mm |
| H | 258mm |
| J | 210mm |
| L | 155mm |
| N | 23mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 4.76 kg |
