SKU: UCFL209CO-SNR

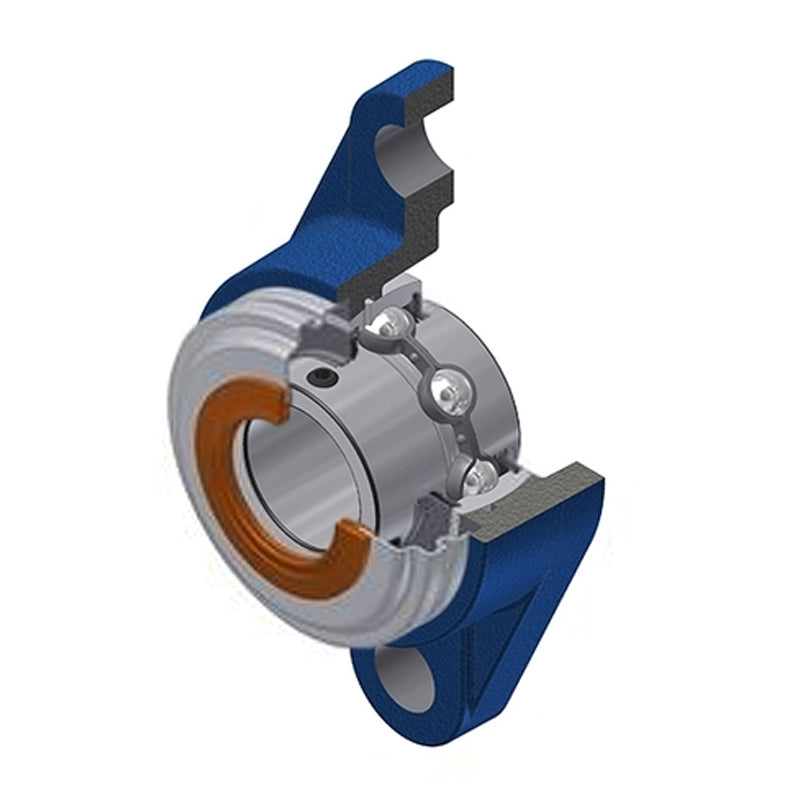

SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR UCFL209CO Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
Rs. 6,663.38
Regular price
Sale price
Rs. 6,663.38
Taxes included.
In stock
Price Break
10+
Rs. 5,930.41
19+
Rs. 5,597.24
29+
Rs. 5,530.61
39+
Rs. 5,463.97
49+
Rs. 5,397.34
74+
Rs. 5,330.70
99+
Rs. 4,997.54
199+
Rs. 4,930.90
249+
Rs. 4,864.27
499+
Rs. 4,797.63
999+
Rs. 4,664.37
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 38mm |
| A1 | 16mm |
| A2 | 52.2mm |
| B | 49.2mm |
| e | 22mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| S | 19mm |
| Dz | 95mm |
| Z | 56.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.899 kg |
