SKU: UCFL209-28-SNR

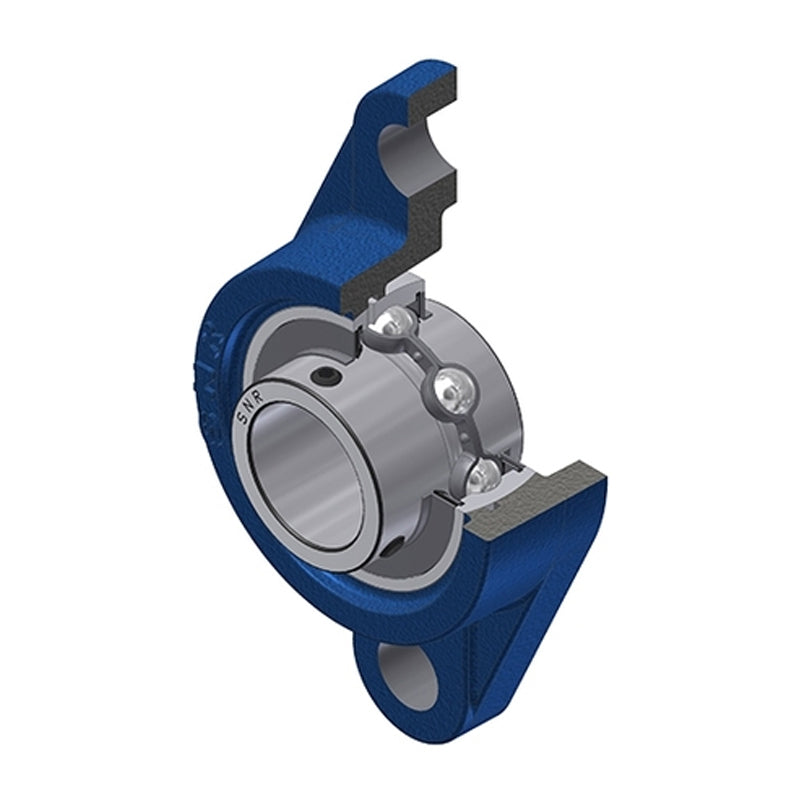

SNR UCFL209-28 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
SNR UCFL209-28 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,950.49
Regular price
Sale price
Rs. 4,950.49
Taxes included.
In stock
Price Break
10+
Rs. 4,405.94
19+
Rs. 4,158.41
29+
Rs. 4,108.91
39+
Rs. 4,059.40
49+
Rs. 4,009.90
74+
Rs. 3,960.39
99+
Rs. 3,712.87
199+
Rs. 3,663.36
249+
Rs. 3,613.86
499+
Rs. 3,564.35
999+
Rs. 3,465.34
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/4 inch |
| A | 38mm |
| A1 | 16mm |
| A2 | 52.2mm |
| B | 49.2mm |
| e | 22mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.87 kg |
