SKU: UCFL208NL3-SNR

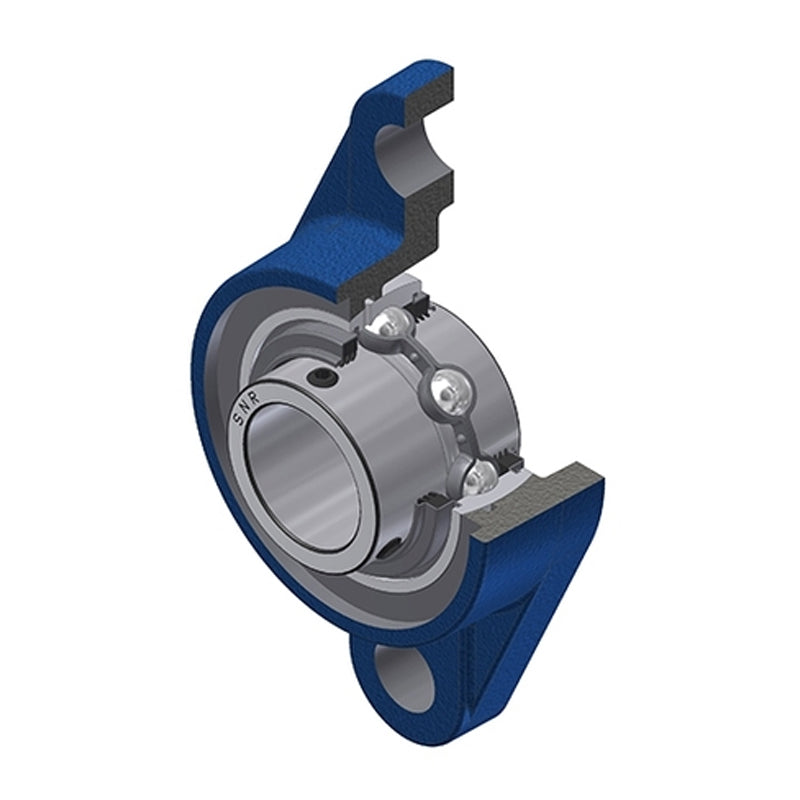

SNR UCFL208NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCFL208NL3 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
Rs. 8,461.18
ex VAT
Regular price
Sale price
Rs. 8,461.18
ex VAT
In stock
Price Break
5+
Rs. 8,376.57
10+
Rs. 8,038.12
20+
Rs. 7,868.90
50+
Rs. 7,615.06
100+
Rs. 7,445.84
500+
Rs. 7,022.78
1000+
Rs. 5,922.83
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical

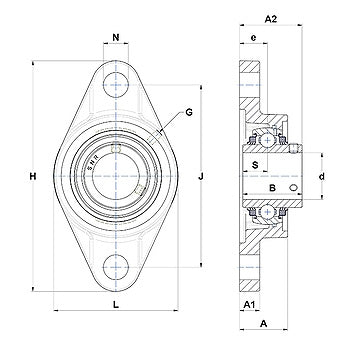

| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 14mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| H | 175mm |
| J | 144mm |
| L | 100mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.46 kg |
