SKU: UCFL205-14N-SNR

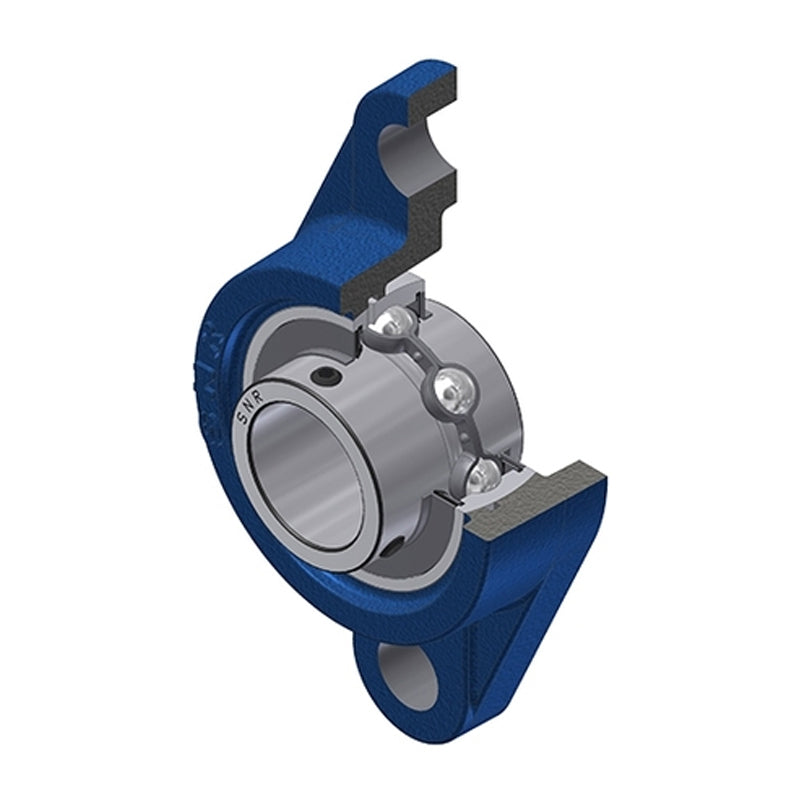

SNR UCFL205-14N Imperial Two Bolt Oval Cast Iron Flange Housing with 7/8 inch Bore Insert - Allow 2-3 Days
SNR UCFL205-14N Imperial Two Bolt Oval Cast Iron Flange Housing with 7/8 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,968.58
Regular price
Sale price
Rs. 3,968.58
Taxes included.
In stock
Price Break
5+
Rs. 3,928.89
10+
Rs. 3,770.15
20+
Rs. 3,690.78
50+
Rs. 3,571.72
100+
Rs. 3,492.35
500+
Rs. 3,293.92
1000+
Rs. 2,778.01
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 7/8 inch |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.7mm |
| B | 34mm |
| e | 16mm |
| H | 130mm |
| J | 90mm |
| L | 68mm |
| N | 16mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.61 kg |
