SKU: UCFL204-12N-SNR

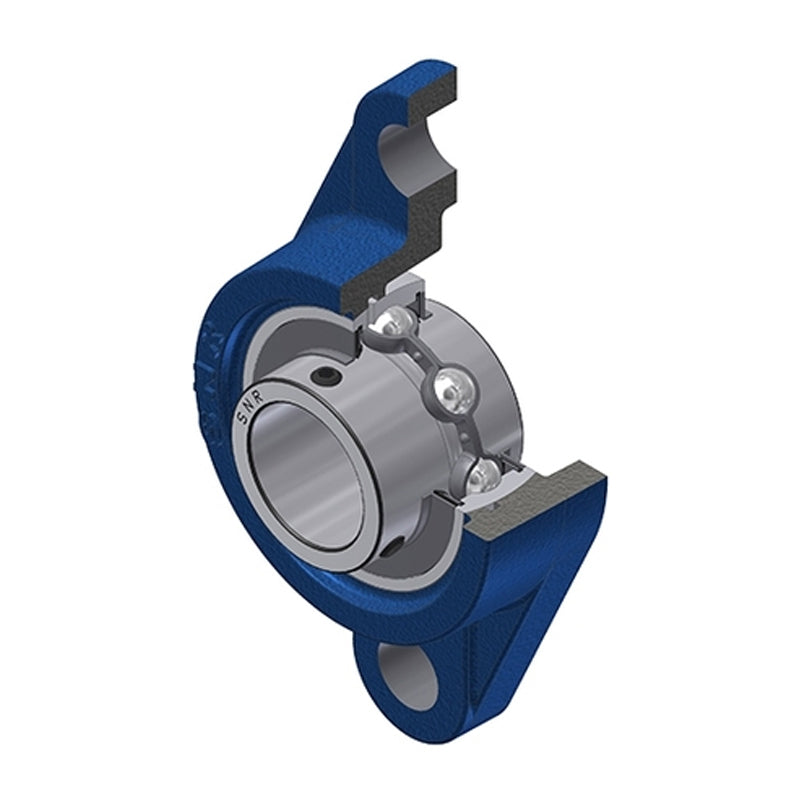

SNR UCFL204-12N Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert - Allow 2-3 Days
SNR UCFL204-12N Imperial Two Bolt Oval Cast Iron Flange Housing with 3/4 inch Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,398.90
Regular price
Sale price
Rs. 3,398.90
Taxes included.
In stock
Price Break
5+
Rs. 3,364.91
10+
Rs. 3,228.96
20+
Rs. 3,160.98
50+
Rs. 3,059.01
100+
Rs. 2,991.03
500+
Rs. 2,821.09
1000+
Rs. 2,379.23
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical

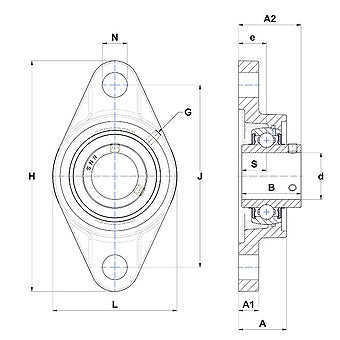

| --- | Dimensions |
|---|---|
| Shaft diameter d | 3/4 inch |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 33.3mm |
| B | 31mm |
| e | 15mm |
| H | 113mm |
| J | 90mm |
| L | 60mm |
| N | 12mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.42 kg |
