SKU: UCFL202-SNR

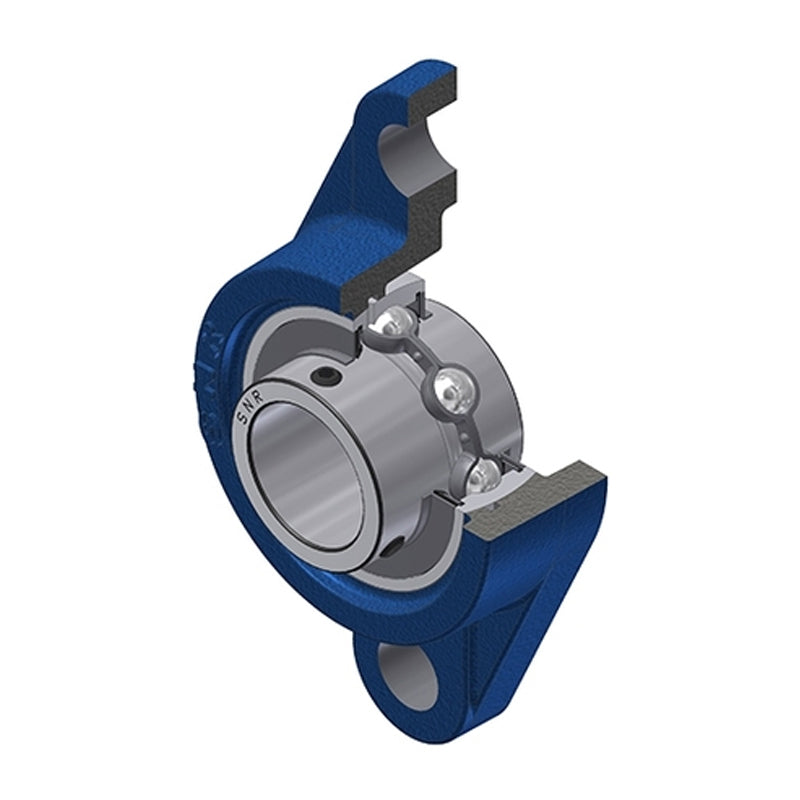

SNR UCFL202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
SNR UCFL202 Metric Two Bolt Oval Cast Iron Flange Housing with 15mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,838.18
Regular price
Sale price
Rs. 2,838.18
Taxes included.
In stock
Price Break
10+
Rs. 2,525.98
19+
Rs. 2,384.07
29+
Rs. 2,355.69
39+
Rs. 2,327.31
49+
Rs. 2,298.93
74+
Rs. 2,270.54
99+
Rs. 2,128.64
199+
Rs. 2,100.25
249+
Rs. 2,071.87
499+
Rs. 2,043.49
999+
Rs. 1,986.73
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 15mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 33.3mm |
| B | 31mm |
| e | 15mm |
| H | 113mm |
| J | 90mm |
| L | 60mm |
| N | 12mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.46 kg |
