SKU: UCFL.211-32

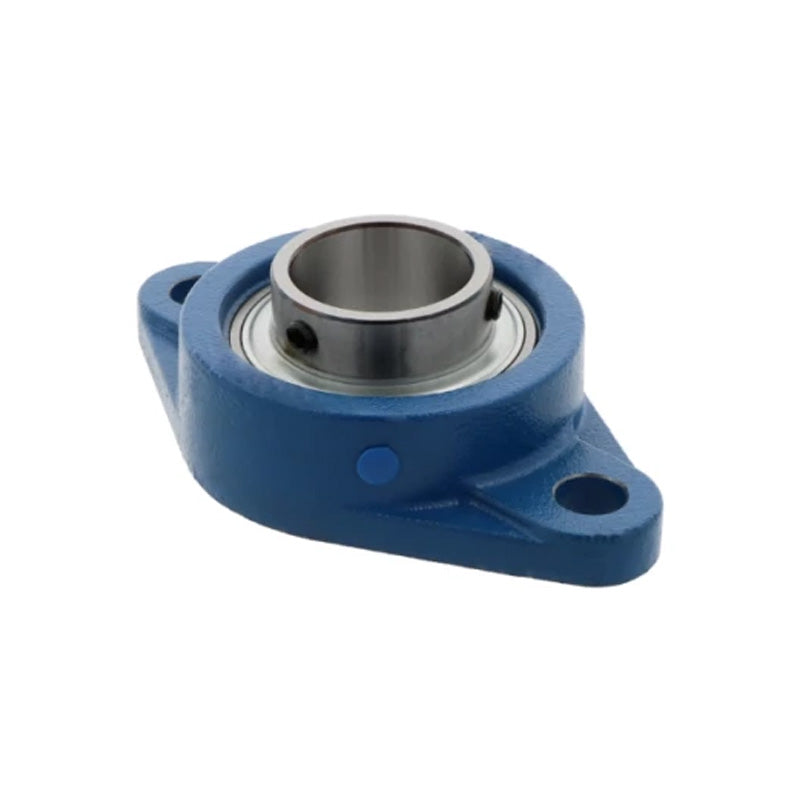

UCFL211-32 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert
UCFL211-32 Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert
Regular price
Rs. 5,119.47
Regular price
Sale price
Rs. 5,119.47
Taxes included.
Equivalent to: SFT2
In stock
Price Break
10+
Rs. 4,556.33
19+
Rs. 4,300.35
29+
Rs. 4,249.16
39+
Rs. 4,197.97
49+
Rs. 4,146.77
74+
Rs. 4,095.58
99+
Rs. 3,839.60
199+
Rs. 3,788.41
249+
Rs. 3,737.21
499+
Rs. 3,686.02
999+
Rs. 3,583.63
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2 inch |
|---|---|
| a | 224mm |
| e | 184mm |
| i | 25mm |
| g | 18mm |
| L | 43mm |
| S | 19mm |
| b | 130mm |
| z | 58,4mm |
| B1 | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.2 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
