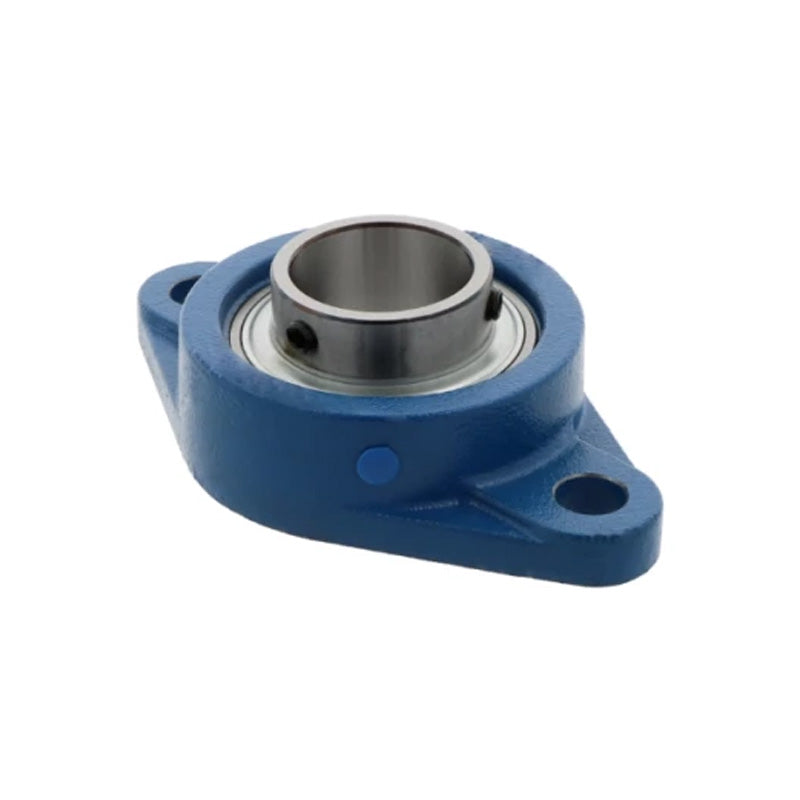

Challenge / FK UCFL209-28 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL209-28 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-3/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 7,286.83
Regular price
Sale price
Rs. 7,286.83
Taxes included.
Equivalent to: UCFL.209-28
In stock
Price Break
10+
Rs. 6,485.28
19+
Rs. 6,120.94
29+
Rs. 6,048.07
39+
Rs. 5,975.20
49+
Rs. 5,902.33
74+
Rs. 5,829.46
99+
Rs. 5,465.12
199+
Rs. 5,392.25
249+
Rs. 5,319.39
499+
Rs. 5,246.52
999+
Rs. 5,100.78
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.209-28
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 148mm
Technical
Technical
| Shaft Diameter d | 1-3/4 inch |
|---|---|
| Casting Length a | 188mm |
| Recommended Bolt Centres L | 148mm |
| Back of Casting to Centre Line of Bearing i | 22mm |
| Depth of Casting at Bolt g | 15mm |
| Overall Casting Height l | 38mm |
| Bolt Hole Diameter s | 19mm |
| Casting Width b | 108mm |
| Back of Casting to Bearing Front z | 52.2mm |
| Bearing Insert Width Bi | 49.2mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | 5/8 inch |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 1900 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC209-28 |
| Housing No | FL209 |
