SKU: UCFL.208-24.TS.CHAL

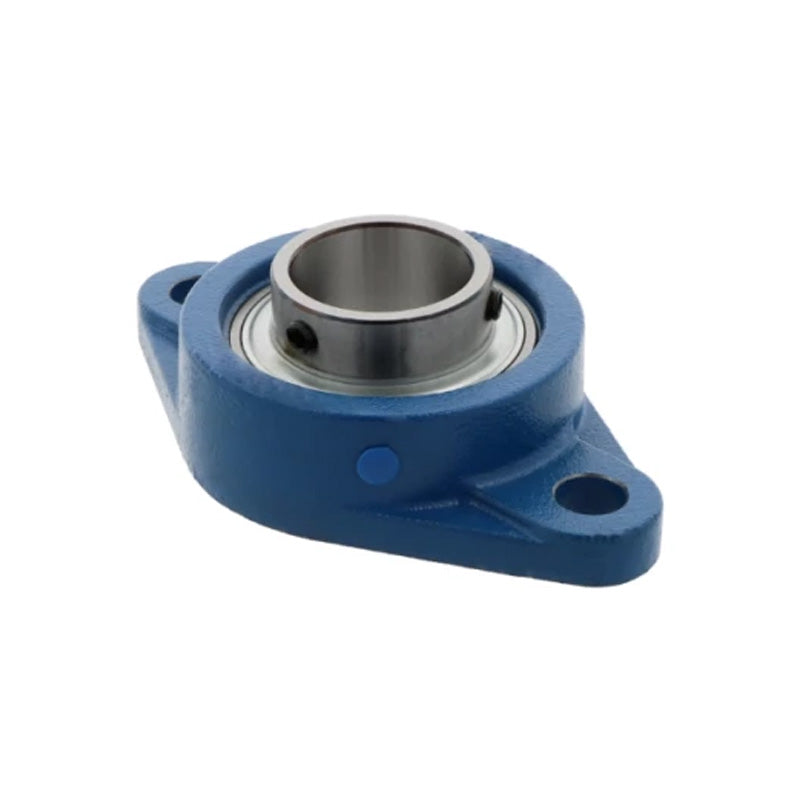

Challenge / FK UCFL208-24 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL208-24 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 6,010.48
Regular price
Sale price
Rs. 6,010.48
Taxes included.
Equivalent to: UCFL.208-24
In stock
Price Break
10+
Rs. 5,349.33
19+
Rs. 5,048.80
29+
Rs. 4,988.70
39+
Rs. 4,928.59
49+
Rs. 4,868.49
74+
Rs. 4,808.38
99+
Rs. 4,507.86
199+
Rs. 4,447.76
249+
Rs. 4,387.65
499+
Rs. 4,327.55
999+
Rs. 4,207.34
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.208-24
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| Shaft Diameter d | 1-1/2 inch |
|---|---|
| Casting Length a | 175mm |
| Recommended Bolt Centres L | 144mm |
| Back of Casting to Centre Line of Bearing i | 21mm |
| Depth of Casting at Bolt g | 14mm |
| Overall Casting Height l | 36mm |
| Bolt Hole Diameter s | 16mm |
| Casting Width b | 100mm |
| Back of Casting to Bearing Front z | 51.2mm |
| Bearing Insert Width Bi | 49.2mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | 1/2 inch |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 2200 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC208-24 |
| Housing No | FL208 |
