SKU: UCFL.206-20.TS.CHAL

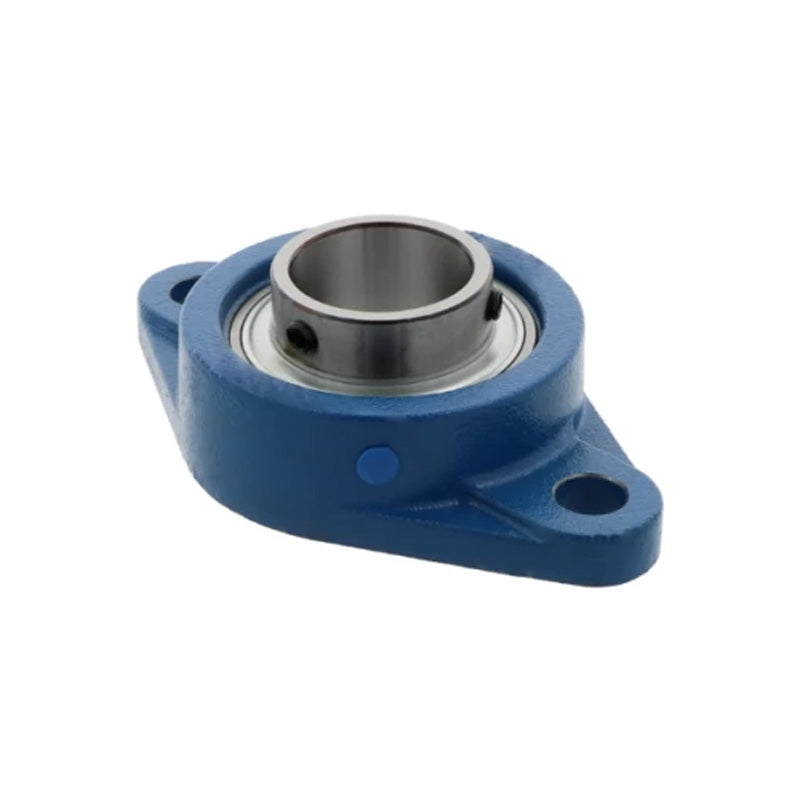

Challenge / FK UCFL206-20 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL206-20 Imperial Cast Iron Two Bolt Oval Flange Housing with 1-1/4 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
Rs. 3,950.66
Regular price
Sale price
Rs. 3,950.66
Taxes included.
Equivalent to: UCFL.206-20
In stock
Price Break
10+
Rs. 3,516.09
19+
Rs. 3,318.55
29+
Rs. 3,279.05
39+
Rs. 3,239.54
49+
Rs. 3,200.03
74+
Rs. 3,160.53
99+
Rs. 2,963.00
199+
Rs. 2,923.49
249+
Rs. 2,883.98
499+
Rs. 2,844.48
999+
Rs. 2,765.46
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.206-20
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 117mm
Technical
Technical
| Shaft Diameter d | 1-1/4 inch |
|---|---|
| Casting Length a | 148mm |
| Recommended Bolt Centres L | 117mm |
| Back of Casting to Centre Line of Bearing i | 18mm |
| Depth of Casting at Bolt g | 13mm |
| Overall Casting Height l | 31mm |
| Bolt Hole Diameter s | 16mm |
| Casting Width b | 80mm |
| Back of Casting to Bearing Front z | 40.2mm |
| Bearing Insert Width Bi | 38.1mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Bolt Size | 1/2 inch |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 2800 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC206-20 |
| Housing No | FL206 |
