SKU: UCFL.205-14

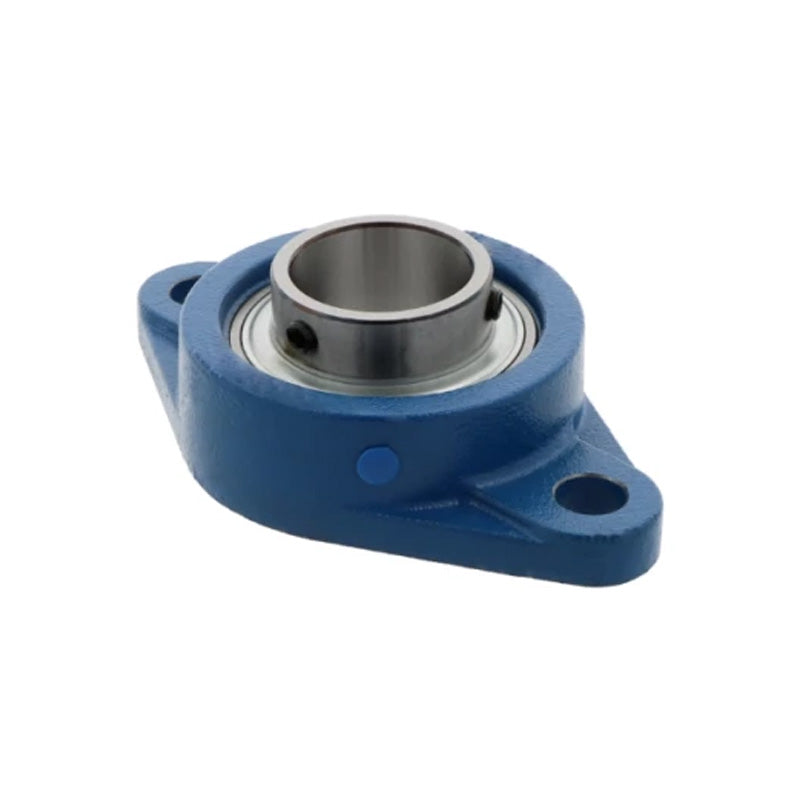

UCFL205-14 Imperial Two Bolt Oval Cast Iron Flange Housing with 7/8 inch Bore Insert
UCFL205-14 Imperial Two Bolt Oval Cast Iron Flange Housing with 7/8 inch Bore Insert
Regular price
Rs. 1,287.91
ex VAT
Regular price
Sale price
Rs. 1,287.91
ex VAT
Equivalent to: SFT7/8
In stock
Price Break
10+
Rs. 1,146.24
19+
Rs. 1,081.84
29+
Rs. 1,068.97
39+
Rs. 1,056.09
49+
Rs. 1,043.21
74+
Rs. 1,030.33
99+
Rs. 965.93
199+
Rs. 953.05
249+
Rs. 940.17
499+
Rs. 927.30
999+
Rs. 901.54
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SFT7/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 130mm |
| e | 99mm |
| i | 16mm |
| g | 13mm |
| L | 27mm |
| S | 16mm |
| b | 68mm |
| z | 35.7mm |
| B1 | 34mm |
| n | 14.3mm |
| Bolt Size | M14 |
| Weight | 0.63 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
