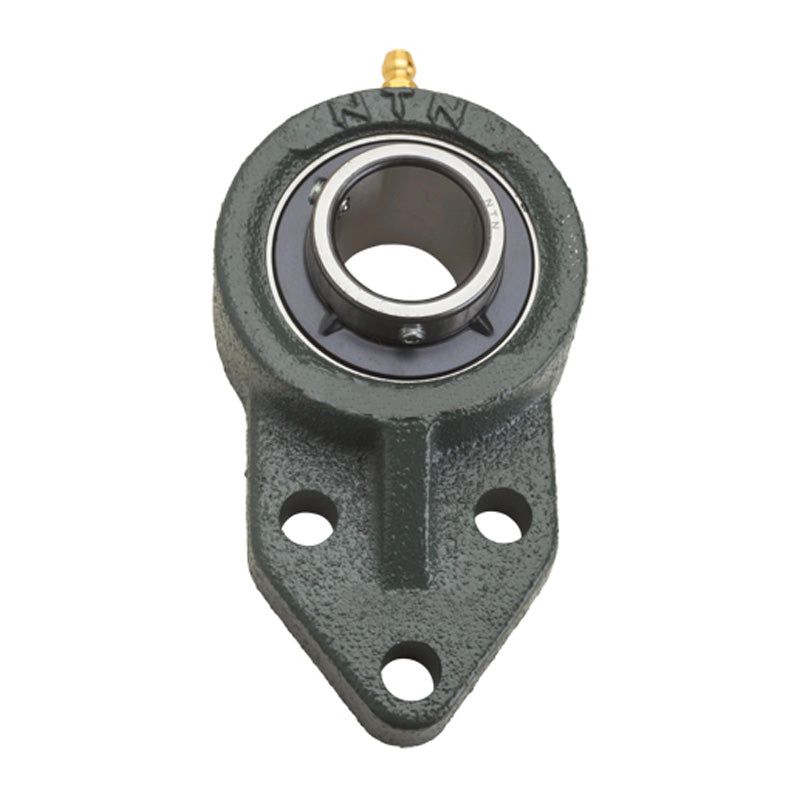

NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
NTN UCFH208D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 40mm Bore
Regular price
Rs. 5,098.99
Regular price
Sale price
Rs. 5,098.99
Taxes included.
In stock
Price Break
10+
Rs. 4,538.10
19+
Rs. 4,283.15
29+
Rs. 4,232.16
39+
Rs. 4,181.17
49+
Rs. 4,130.18
74+
Rs. 4,079.19
99+
Rs. 3,824.24
199+
Rs. 3,773.25
249+
Rs. 3,722.26
499+
Rs. 3,671.27
999+
Rs. 3,569.29
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFH
- Bolt Hole Centres:
- 50mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H<sub>3</sub> | 164mm |
| J | 50mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 16mm |
| A | 36mm |
| N | 12mm |
| H | 60mm |
| H<sub>1</sub> | 41mm |
| L<sub>1</sub> | 78mm |
| H<sub>2</sub> | 72mm |
| L | 100mm |
| A<sub>0</sub> | 51.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M10 |
| Mass | 1.8 kg |
