SKU: UCFH202D1-NTN

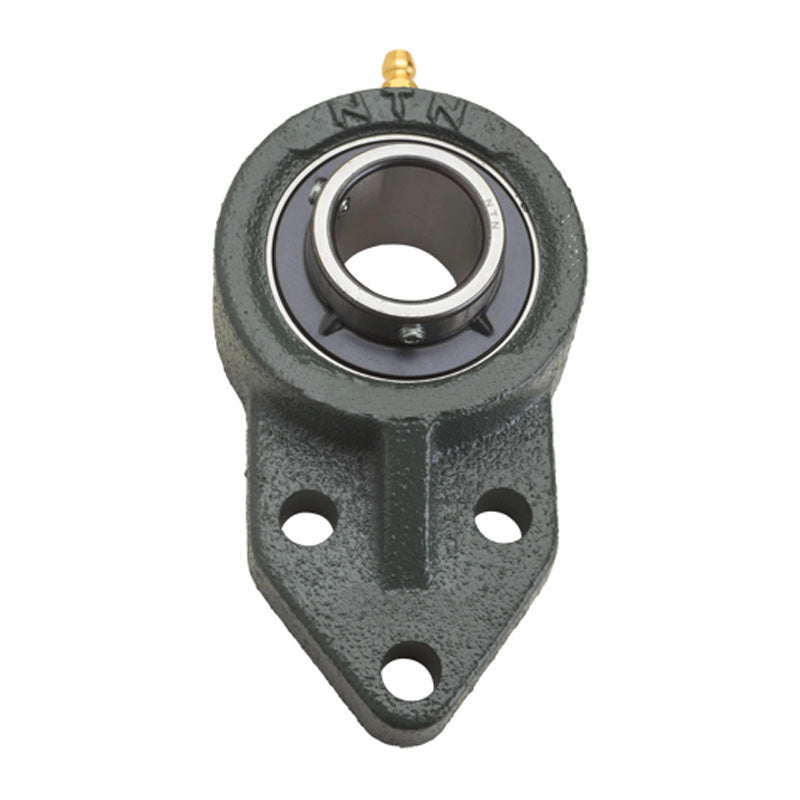

NTN UCFH202D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore - Allow 2-3 Days
NTN UCFH202D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 15mm Bore - Allow 2-3 Days
Regular price
Rs. 3,400.18
Regular price
Sale price
Rs. 3,400.18
Taxes included.
In stock
Price Break
5+
Rs. 3,366.18
10+
Rs. 3,230.17
20+
Rs. 3,162.17
50+
Rs. 3,060.16
100+
Rs. 2,992.16
500+
Rs. 2,822.15
1000+
Rs. 2,380.13
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCFH
- Bolt Hole Centres:
- 32mm
Technical
Technical
| Shaft diameter | 15mm |
|---|---|
| H<sub>3</sub> | 110mm |
| J | 32mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 13mm |
| A | 25.5mm |
| N | 10mm |
| H | 42mm |
| H<sub>1</sub> | 27mm |
| L<sub>1</sub> | 52mm |
| H<sub>2</sub> | 52mm |
| L | 62mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M8 |
| Mass | 0.6 kg |
