SKU: UCFE216-SNR

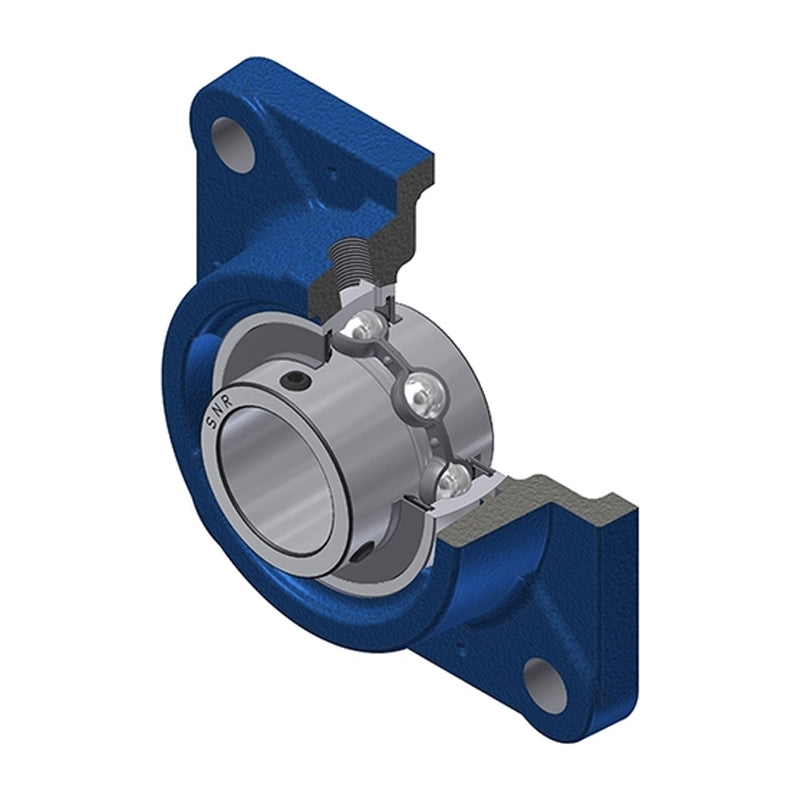

SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
SNR UCFE216 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 17,276.13
Regular price
Sale price
Rs. 17,276.13
Taxes included.
In stock
Price Break
10+
Rs. 15,375.76
19+
Rs. 14,511.95
29+
Rs. 14,339.19
39+
Rs. 14,166.43
49+
Rs. 13,993.67
74+
Rs. 13,820.90
99+
Rs. 12,957.10
199+
Rs. 12,784.34
249+
Rs. 12,611.57
499+
Rs. 12,438.81
999+
Rs. 12,093.29
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCFE
- Bolt Hole Centres:
- 153mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 80mm |
| A | 61mm |
| A1 | 20mm |
| A2 | 90.6mm |
| B | 82.6mm |
| e | 41.3mm |
| J | 153mm |
| L | 197mm |
| N | 23mm |
| S | 33.3mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 7.04 kg |
